Project Si-Rally Pics.
Here are the pics of my 2000 SiR (B16A2) during the past 2 weeks undergoing it's rally-car transformation:
First up, the new fogs:

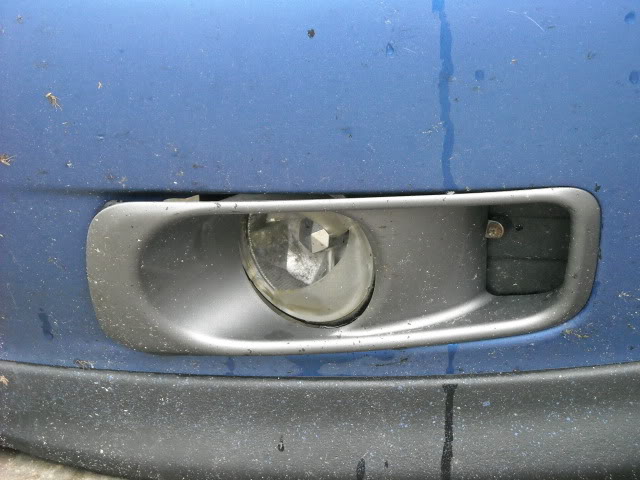

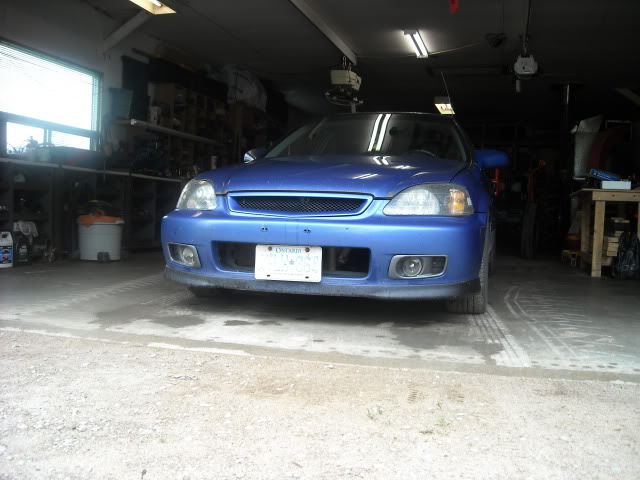

The old, busted oem fogs

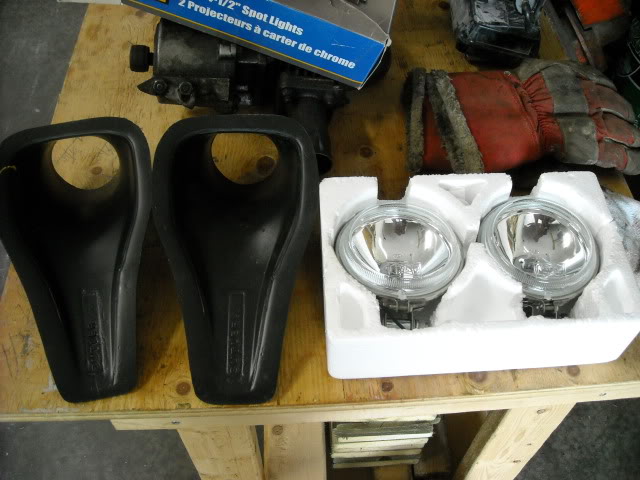

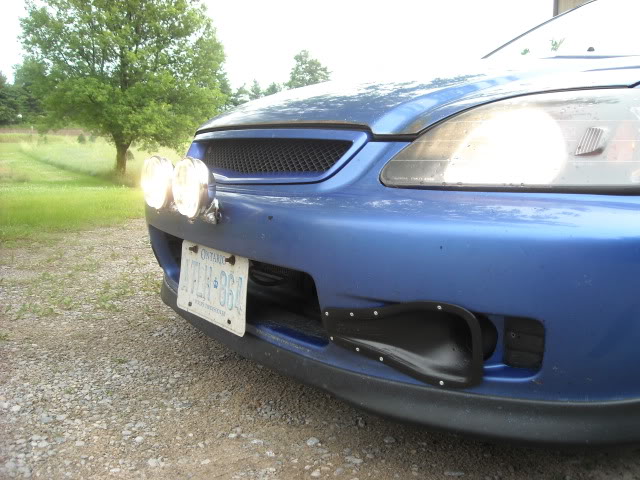

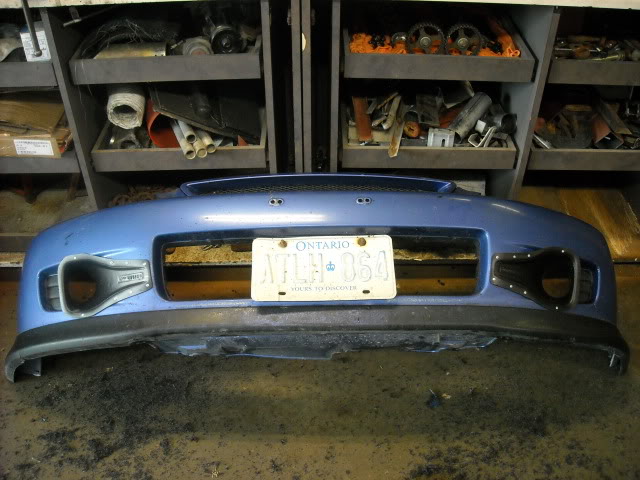

The new fogs and naca-ducts. Fogs are 100watt spot-lights and were on sale for $15 at Princess auto!

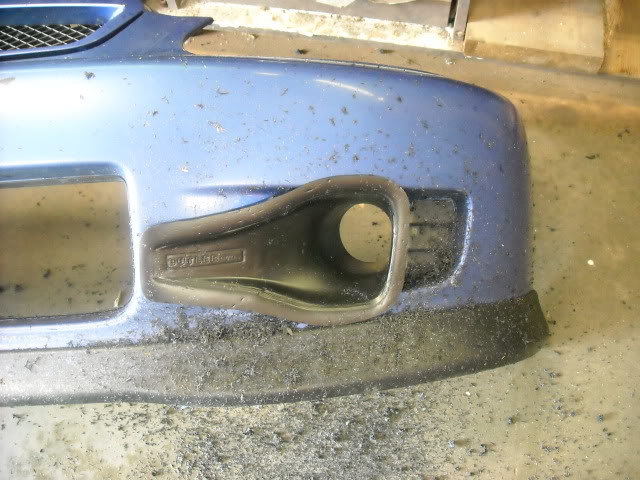

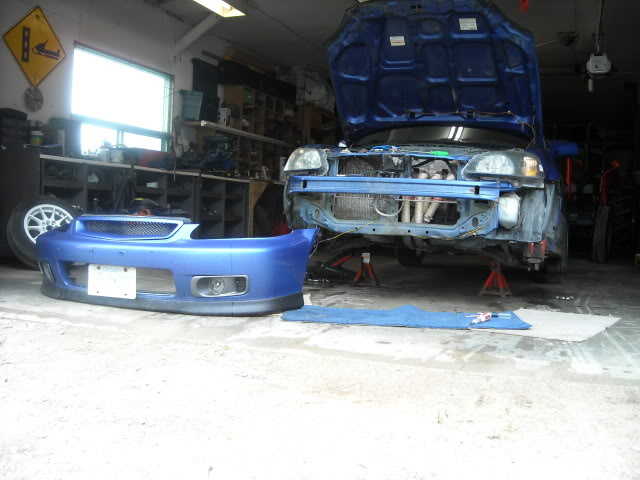

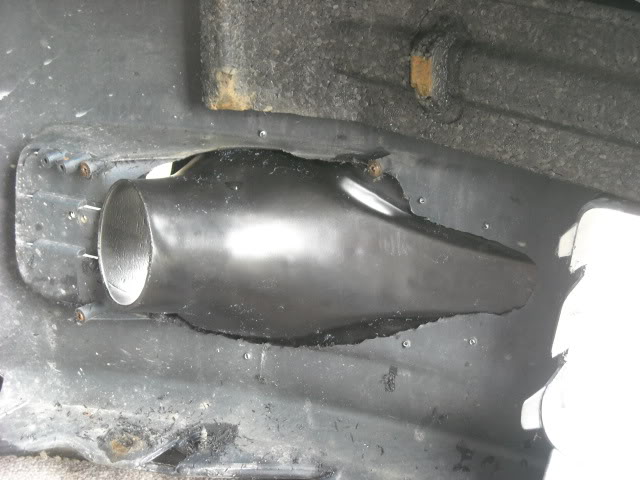

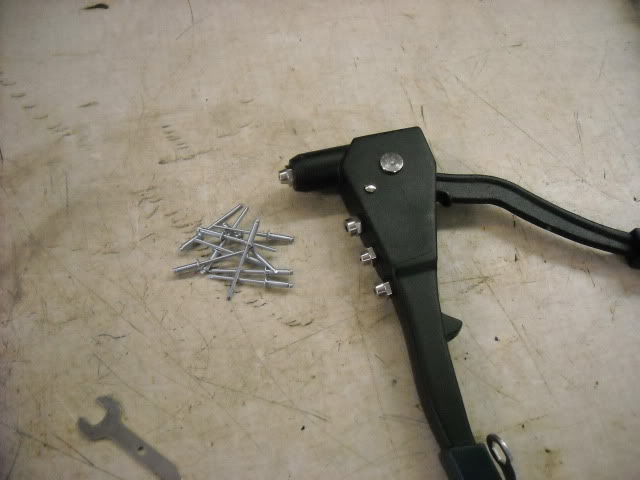

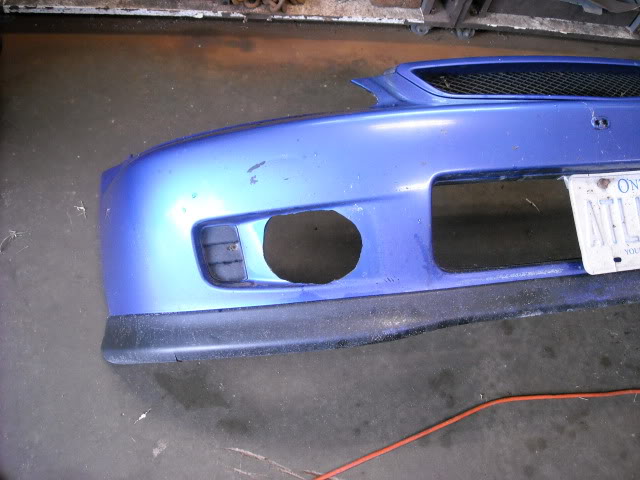

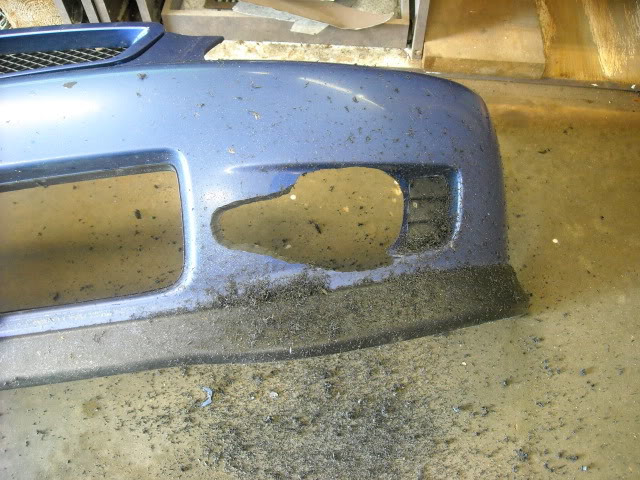

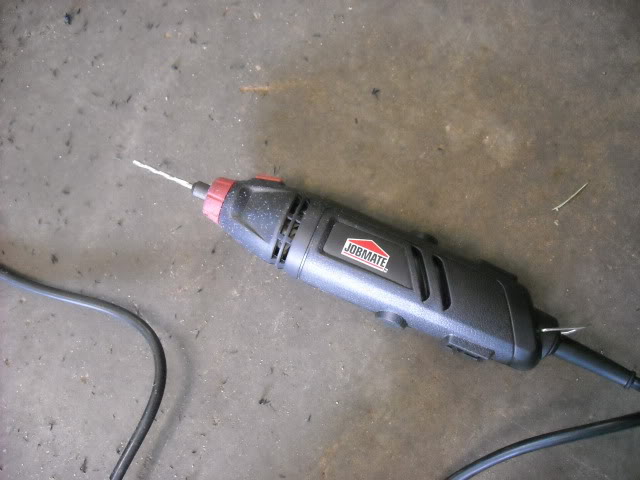

Modding the bumper to make the ducts fit

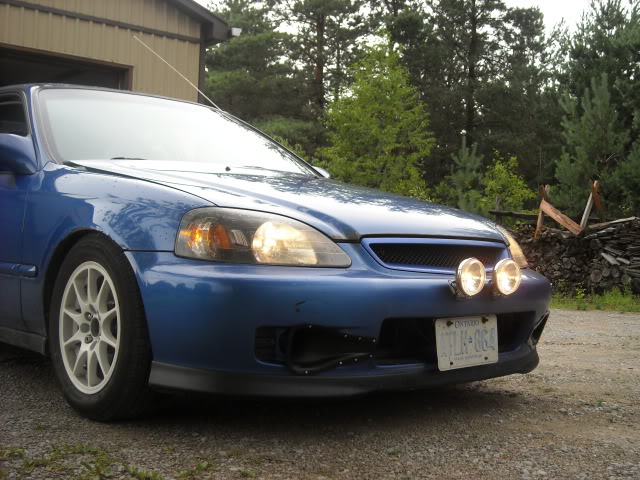

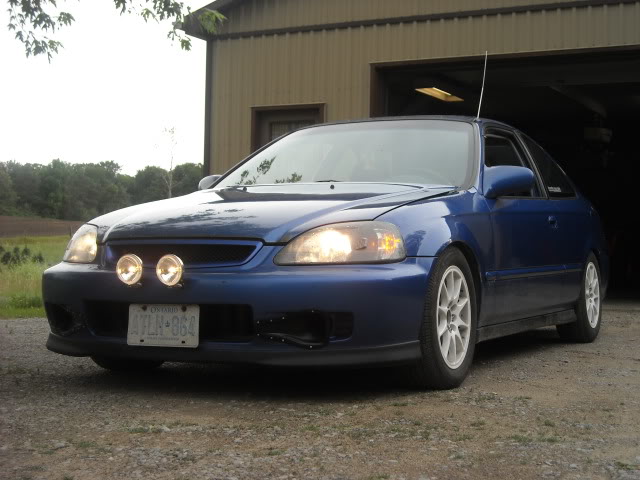

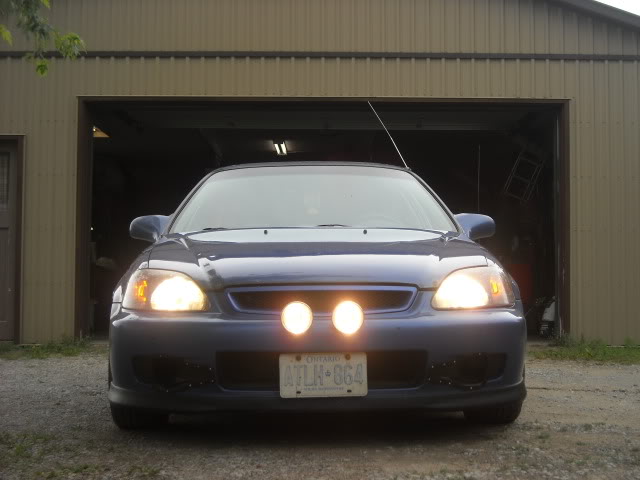

The finished front bumper with new fogs:
Now comes the suspension work:

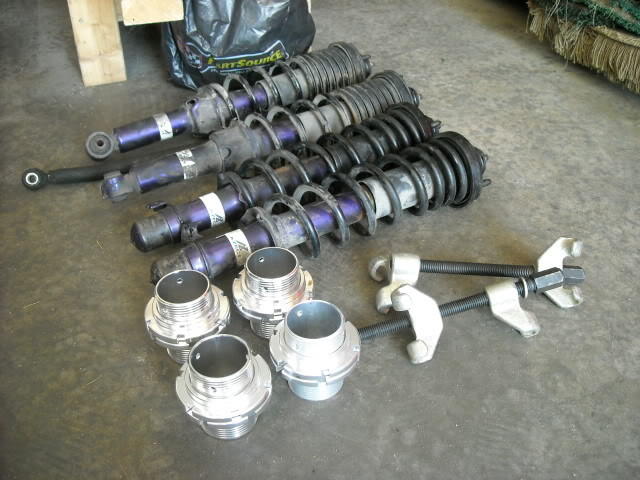

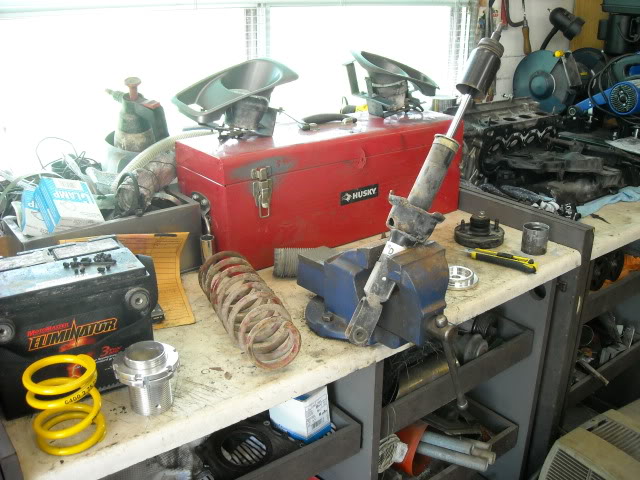

The ITR springs and dampers I ended up not using.

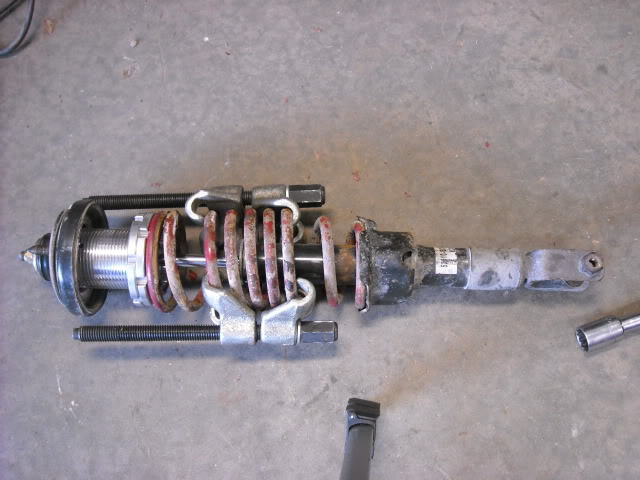

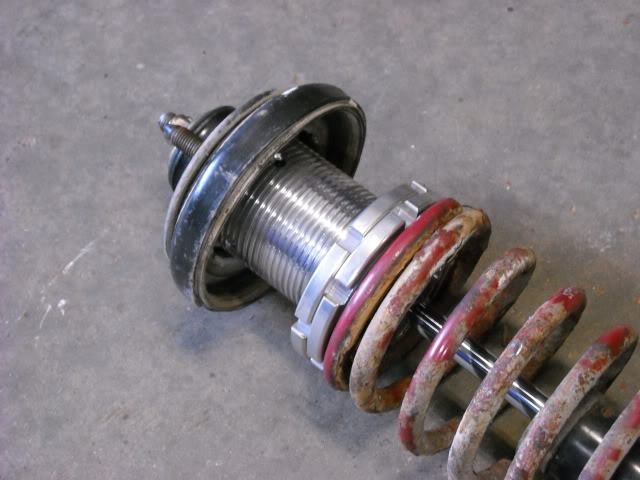

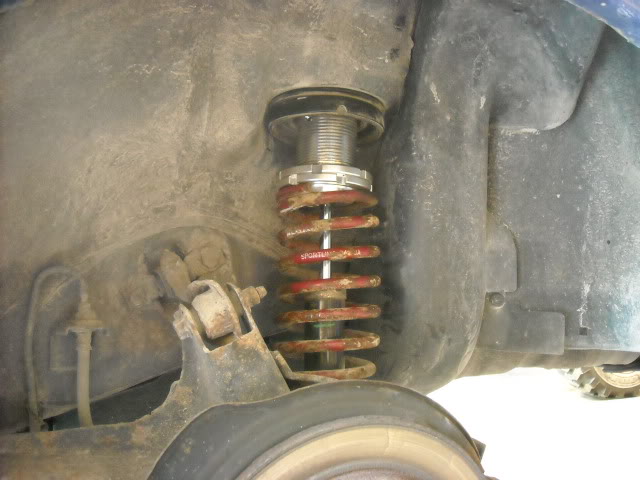

Pre-loaded eibach sportline spring with height collar at max height. This is one of the rear struts shown

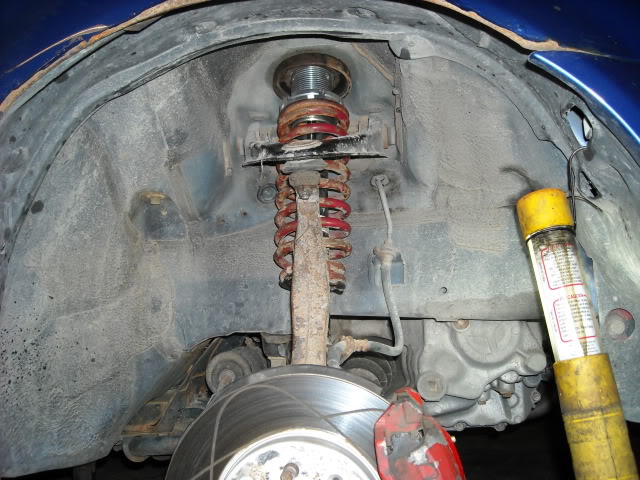

And the front, set a bit lower then the rear for an even level stance

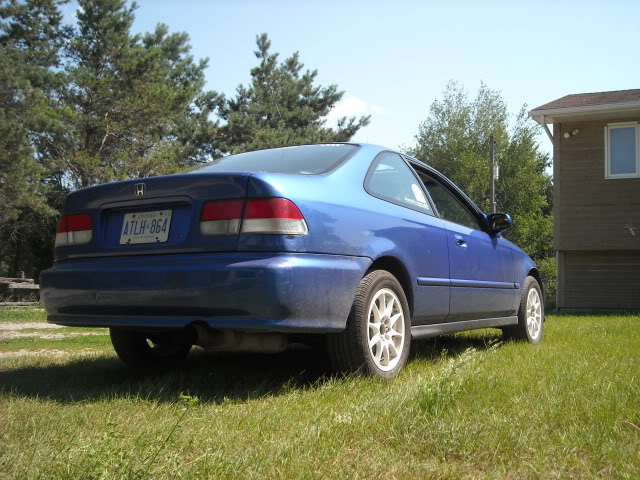

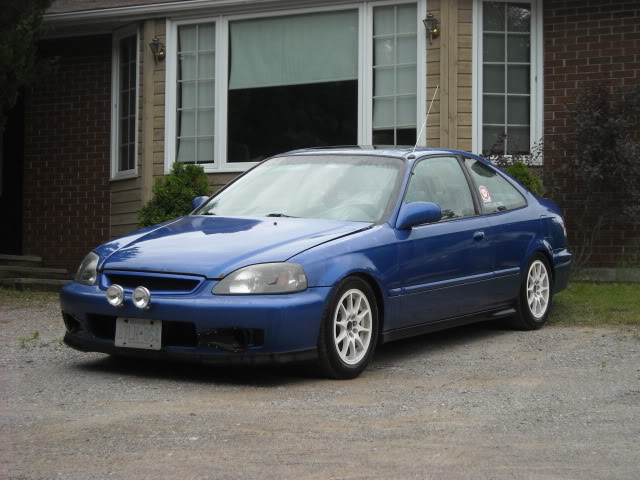

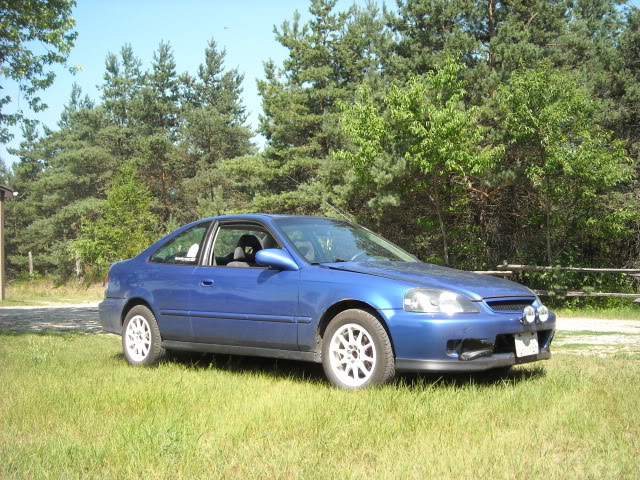

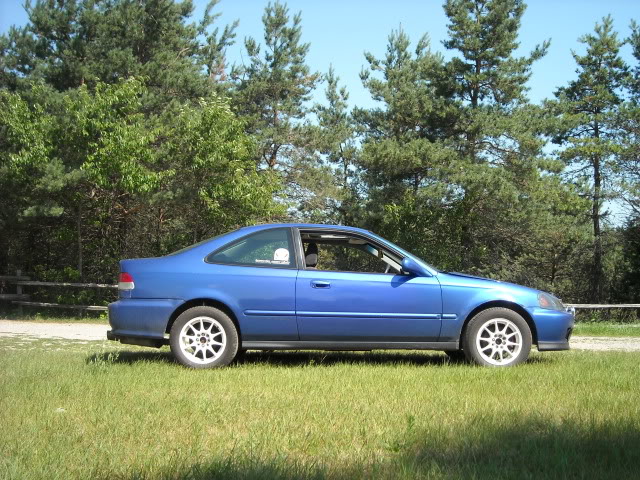

And here is the new ride height and stance:
Enjoy!
Would like to hear your thoughts/opinions. Good or bad!
Thanks for looking.
First up, the new fogs:
The old, busted oem fogs
The new fogs and naca-ducts. Fogs are 100watt spot-lights and were on sale for $15 at Princess auto!
Modding the bumper to make the ducts fit
The finished front bumper with new fogs:
Now comes the suspension work:
The ITR springs and dampers I ended up not using.
Pre-loaded eibach sportline spring with height collar at max height. This is one of the rear struts shown
And the front, set a bit lower then the rear for an even level stance
And here is the new ride height and stance:
Enjoy!
Would like to hear your thoughts/opinions. Good or bad!
Thanks for looking.
07-20-2010, 11:05 AM
#6
Moderator
Thread Starter
Join Date: May 2010
Location: Where my car is.
Posts: 724
Forgot to mention about the ducts. The one on the passenger side will be routed to a custom airbox for the short-ram intake, which I'll be making next. The other side, I'm not sure yet.
Thanks for the nice comments.
I was seriously expecting to get ripped on...lol.
The car rides awesome. The springs are giving a higher/stiffer rate now. It actually rides smoother because it's not so close to the bump-stops anymore. haha. Body roll is about the same. I think there's some tri-pod action under hard-cornering, but thats to be expected.
It's nice to be able to blow over speed bumps and rail-way tracks without bouncing off the road or scraping the exhaust! Will be much more driveable in the winter too.
Thanks for the nice comments.
I was seriously expecting to get ripped on...lol.
The car rides awesome. The springs are giving a higher/stiffer rate now. It actually rides smoother because it's not so close to the bump-stops anymore. haha. Body roll is about the same. I think there's some tri-pod action under hard-cornering, but thats to be expected.
It's nice to be able to blow over speed bumps and rail-way tracks without bouncing off the road or scraping the exhaust! Will be much more driveable in the winter too.
07-20-2010, 01:36 PM
#10
That is an awesome Idea never thought anyone would do this with that type of civic you usually get people to slam their cars, your gonna go off-roading that is just awesome man looking forward to seeing this project as you continue to work on it
07-20-2010, 03:45 PM
#13
Moderator
Thread Starter
Join Date: May 2010
Location: Where my car is.
Posts: 724
07-20-2010, 03:47 PM
#14
07-21-2010, 11:21 AM
#17
Moderator
Thread Starter
Join Date: May 2010
Location: Where my car is.
Posts: 724
Yep.
Thanks.
Won't actually be racing it in rally events. It's mainly to make the car more practical for the type of driving I do and the conditions I drive in. And to be different.
Thanks.
Won't actually be racing it in rally events. It's mainly to make the car more practical for the type of driving I do and the conditions I drive in. And to be different.
