My DB2 Build


Alright so I'm bored and decided what better time to make a build thread and entertain myself and others.

I've been around Hondas for a long time. Some people here make remember me and my 1st EG hatch (blue, slammed, fart can, amber turns, autotragic circa 2001-2002). Since then I've had a 89 5.0L Mustang notch back, 89 Prelude Si 4WS, 94 Grand Cherokee all jacked up on mudders, 93 CX hatch beater, 93 Grand Cherokee V8 and finally my 93 GS-R. I bought the Teg because gas prices were nuts and my commute is about 60km one way to work (crap).

Anyhow, here's the car in all it's glory shortly after buying it. I add 1 pieces, ITR style lip, amber turns and of course, stickers!

http://farm4.static.flickr.com/3129/...93c3502f_b.jpg
http://farm4.static.flickr.com/3254/...72ef3404_b.jpg

Then I picked up parts to do my S2000 cluster install.

https://farm4.static.flickr.com/3180...7d9cdd2f_b.jpg
https://img.photobucket.com/albums/v...terPlugs01.jpg

Modifry ECT converter:
https://farm4.static.flickr.com/3272...a447c798_b.jpg

Electronic VSS:
http://img.photobucket.com/albums/v8...ter/VSS001.jpg

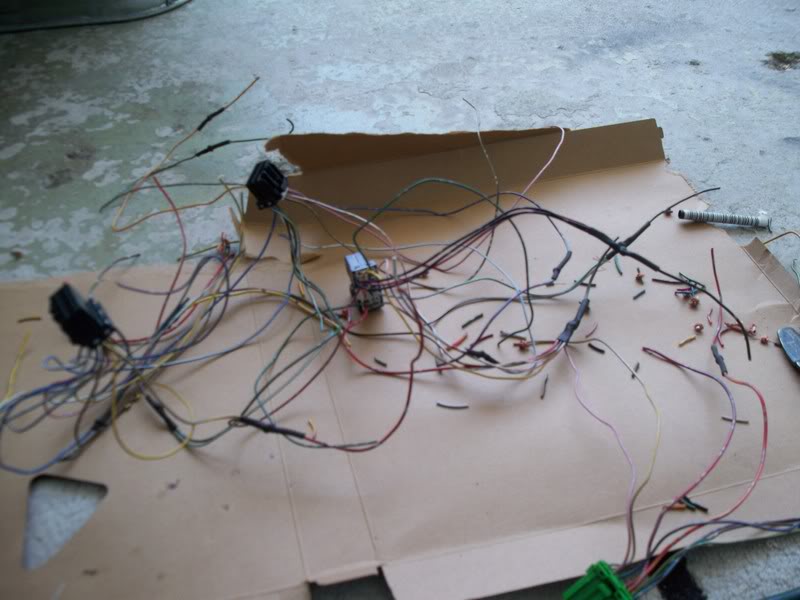

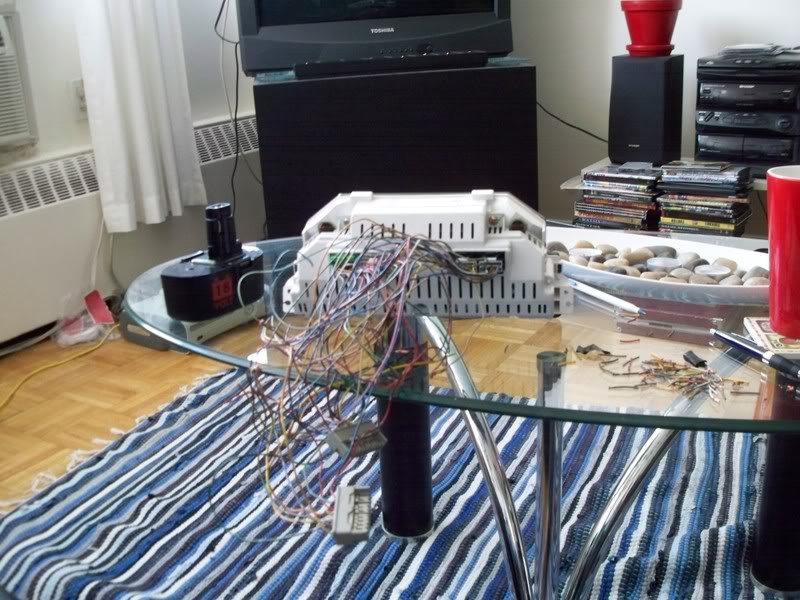

Started wiring the S2000 cluster plugs to spare DA cluster plugs I pick up.
Attachment 14687
http://img.photobucket.com/albums/v8...oldering01.jpg
Attachment 14688

I've got over 20 hours worth of work into the harness. Had to figure out all the DA wiring with a spare cluster, total pain.

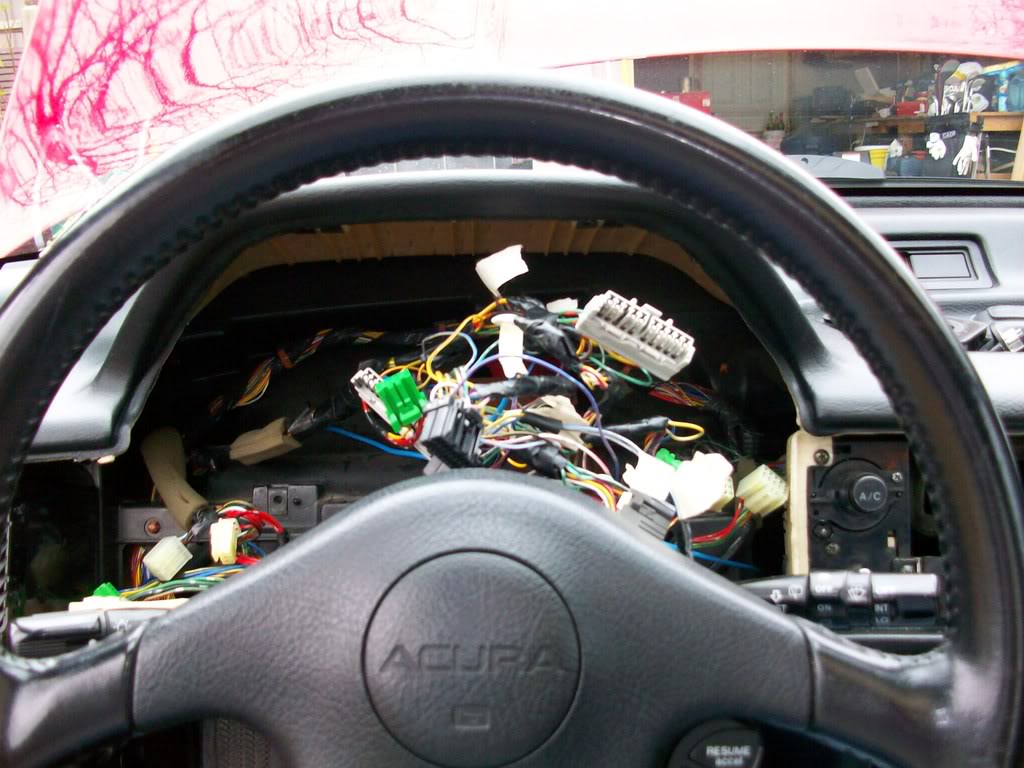

Then soldered it into the car:
Attachment 14689

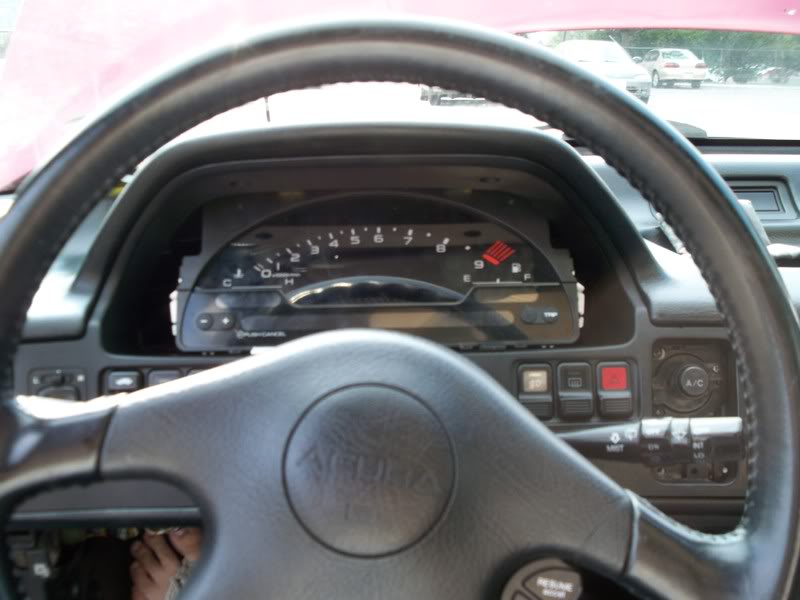

Then did a little trial run of it (no speedo or ECT at this time):
Attachment 14690

Here's a little vid and some driving, ignore my dumb comments.

And a night vid.

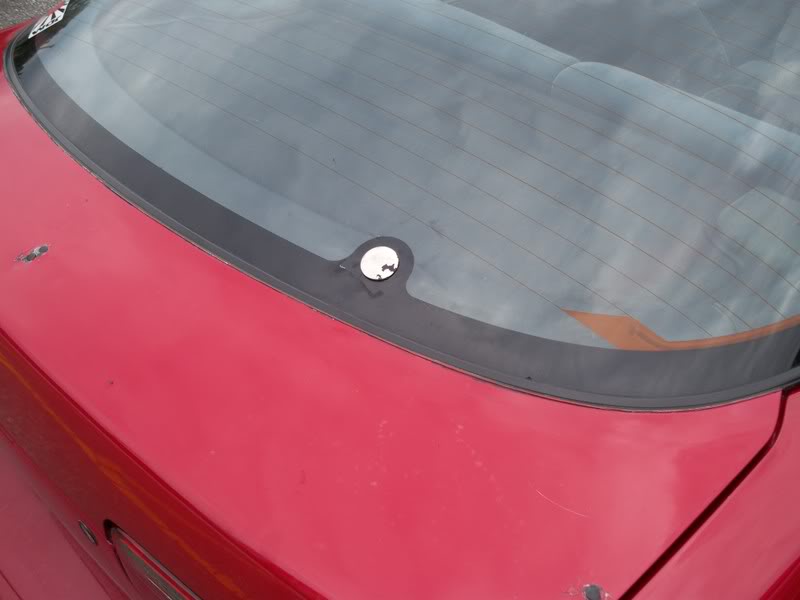

Then I deleted the wiper all ghetto like (have a real plug now):
Attachment 14684

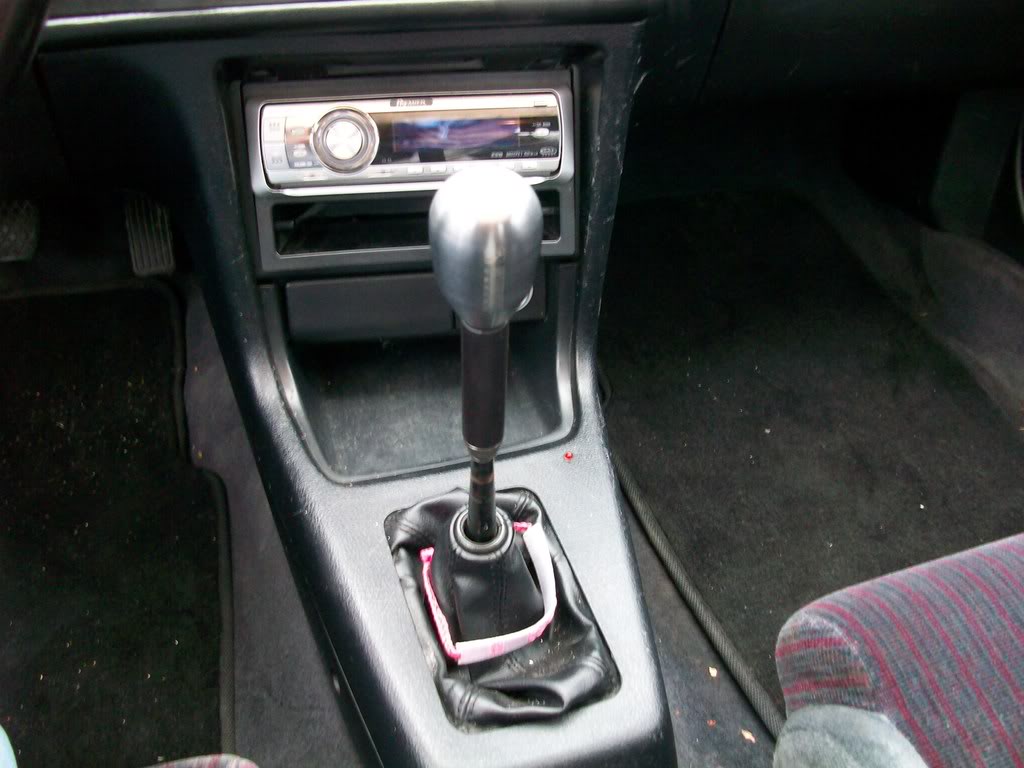

Put in a shift extender and Skunk2 knob:
Attachment 14685

Jacked her up for the winter:
Attachment 14686

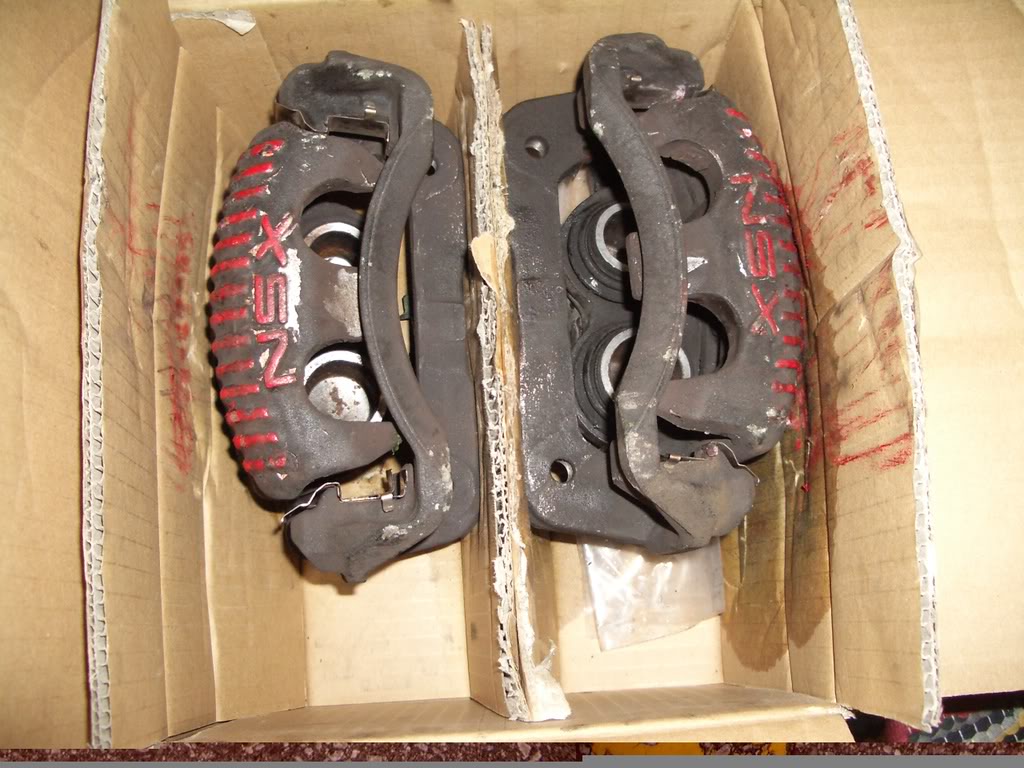

Bought NSX calipers for my front brakes:
Attachment 14678

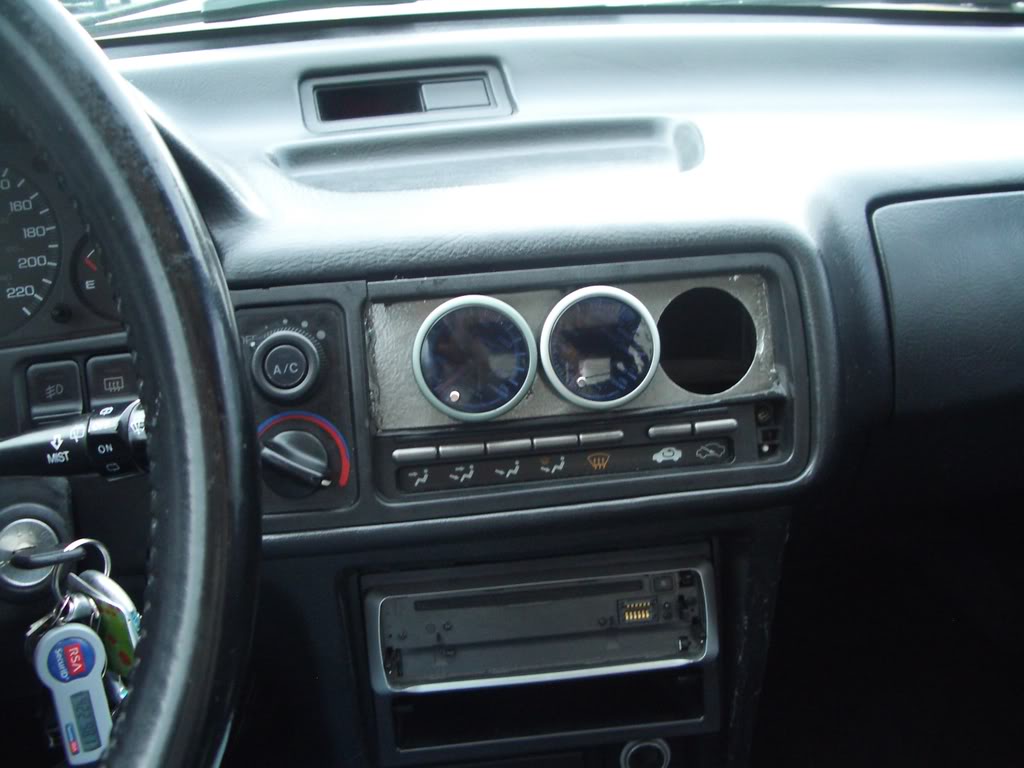

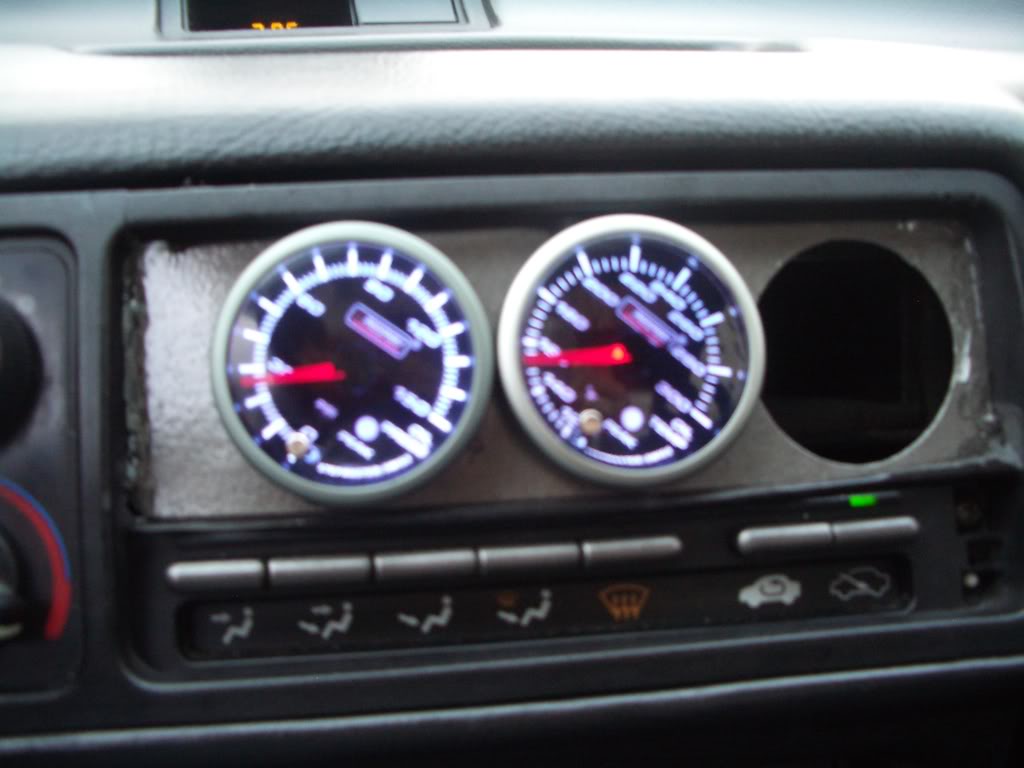

Installed some Pro Sport Oil Pressure and Temp Gauges:
Attachment 14679
Attachment 14680
Attachment 14681

Most important part, videos!
http://www.youtube.com/watch?v=IdviENH7Euw
http://www.youtube.com/watch?v=qjanU4LZ0Og

Also put in a C-Pillar bar.
http://img.photobucket.com/albums/v8...CPillar001.jpg

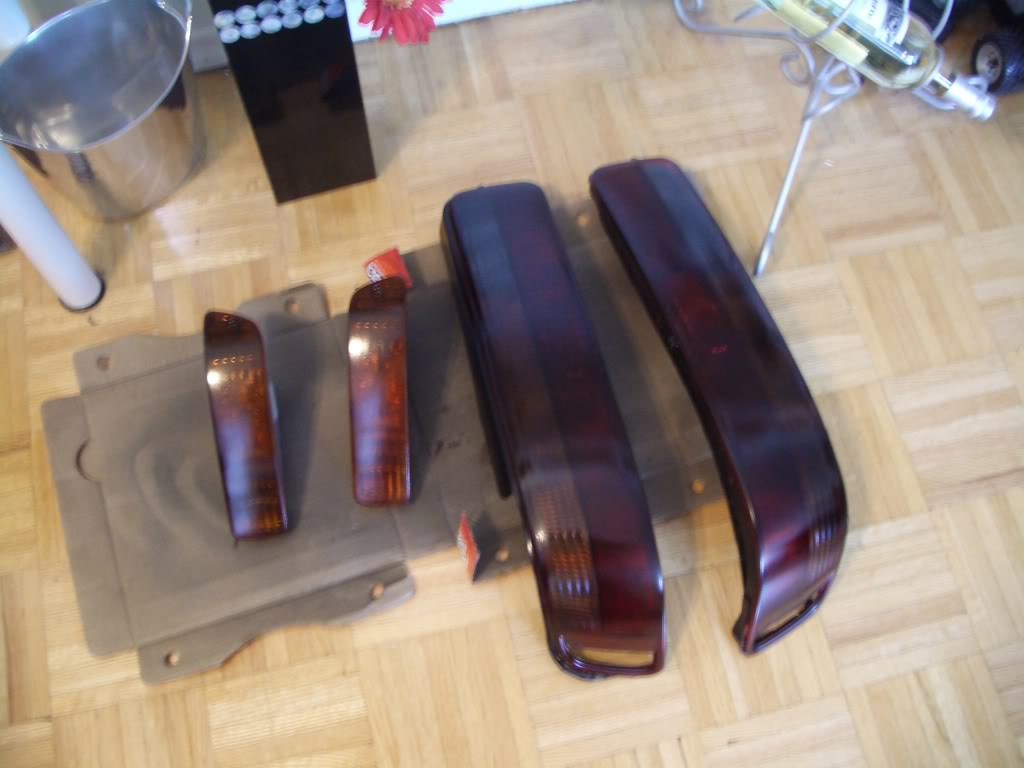

I decided to slightly tint/smoke my spare tails and bumper turns. I'm pleased with the out come. They won't go on till spring time.
Attachment 14682

PIC Apex 10k front/8k rear and Blox Rear LCAs have been ordered.
Attachment 14683

And that's where I end off.
I've got a B18B block and I might build up an LS/VTEC motor but anyone who knows me knows my mind changes one day to the next.

Right now I'm gonna re do my suspension, get some new rims, some exterior ----, brakes, etc.

Enjoy!

for suspension i woudl suggest f+R suspension tech swaybars they compliment the cpillar...

cant wait too see the tails on the car iv wanted to smoke mine iv just been lazy

Looking sick! you having a tough time doing the speedo cable? man I hope you post a DIY for the cluster i love it! Nice to see more DA builds comin through! DA love!

Ive got smoked tails comin on and turn signals too lol, just waiting for seasonal change :P

I've got a rear strut bar too lol. I'm looking at an ASR rear bar and sub frame kit actually, we'll see how nice Christmas is to me first.

Speed cable is fine once you get use to it.
I just need some side markers and a new set of 1 pieces, mine are cracked.

does the rear strut bar really do anything? if so is it noticeable? i wanna get a rear subframe brace but i just need the dimensions so i can get 1 lazer cut @ work... id rather 1 off it so i can lazer in a design

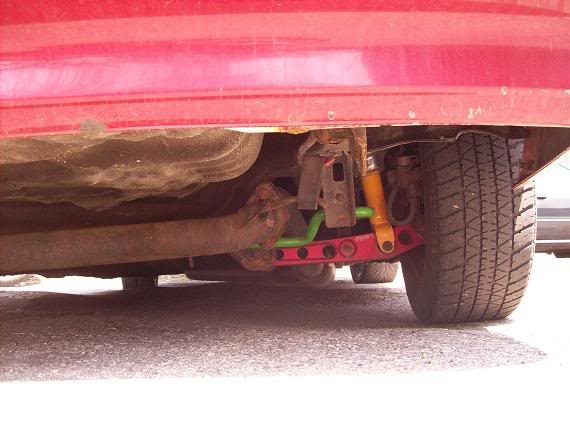

this is what my current setup looks like

Attachment 14677

Strut bar is just a no name BS Pac Mall Piece. My old EG had some Skunk2 stuff on it and I noticed a big difference. The brand name stuff is generally more stiff and not flexy like the cheap brands. I can grab my megan c-pillar bar and almost bend it, good thing it was cheaper.

I need a swap bar and I like the bling of the ASR.

OOOO SHINEY!

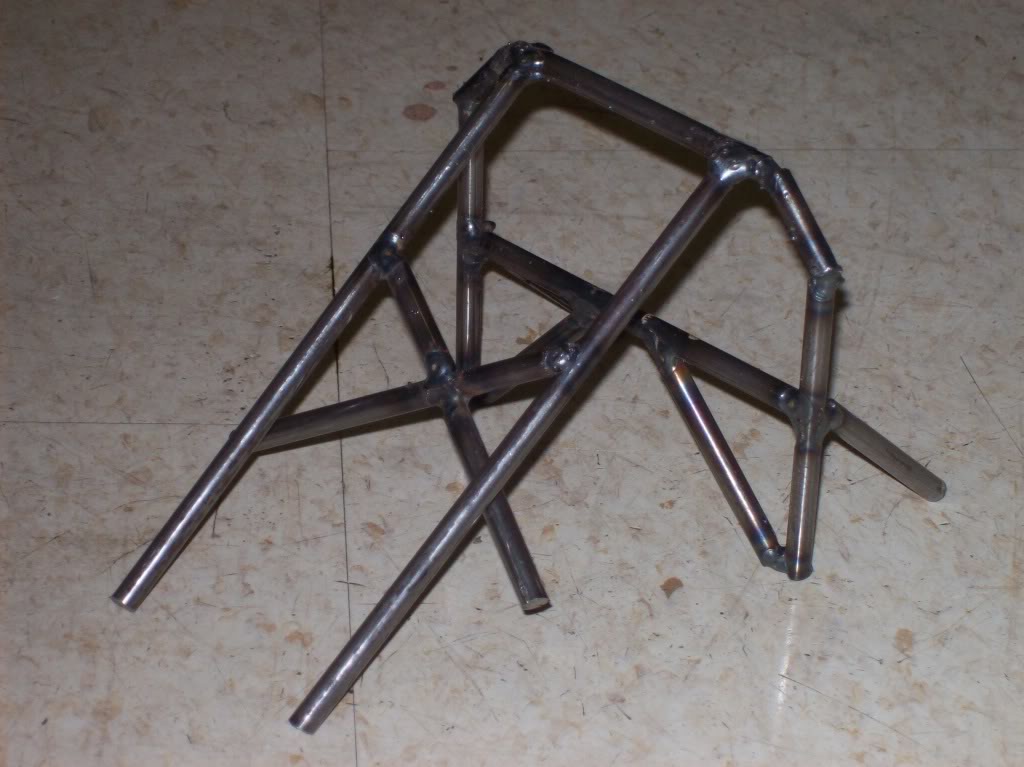

yeah im thinking bout a cage i was bored @ work 1 dayand decided to mock 1 up. but right now thats on hold as i just got laid off...but i have one more week in jans o ill prob finish the mock cage and enclose the front seats and engine bay

Attachment 14676

I won't be doing a cage till the car is no longer a DD and still it will never be a total race car. I like to cruise and ---- lol.

Next set of mods are ASR brace and rear sway bar, ST front sway bar, rear tie bars (EM racing maybe), full bushing kit. I might do a camber kit, not sure yet. Then it's get my NSX brakes on the front and RSX brakes on the rear.

my car is a DD and i still want to do the cage... rsx brakes on the rear.. really how much bigger than stock. as i have to get bigger brakes on the rear. once u have the nsx calipers on id like a ride would like to compare between my wilwood bbk

It's just RSX calipers really. Using EP3 rotors since they are 4x100 (early models were 4 lug), that will give me 10 or 10.3" rears which should really balance it out nicely.

I'll likely be doing the swap at my friend's dad's shop which is just out side of Cambridge. You're more then welcome to come check it out.

Nice work man

nice work Anthony, i love the cluster. thought about doing it myself. do you have a wiring schematic for it?

how far is just outside of cambridge. id stop by and take a look. as my rear brakes re dwarfed by my front kit

this would be a great alternative for the rear brakes. as iv had so many rear calipers seize on me

hey man yur ride is comming together nicely...i was wondering where u got da c-piller bar from..im lookin 4 one of those 4 my da as well

Im getting the Miracle C-Pillar Bar, along with the Butterfly bars, ordering them in a month, its a 3 month wait for them.. so gotta order in time for spring :D... Miracle FTW!

Thanks bro:beer:

So after I spend 20 hours figuring out the wiring and all the hard stuff you just want my wiring diagrams. :naughty:
I've got cluster pin outs, no clue if they are the same on the 90-91 though, I don't see why not. I intend to do a complete wiring diagram/list and how to once I get it all finalized.

Not sure. They just moved to a new shop like a week ago and I forget where it is.

It's a Megan Racing one for a EF bought it from --------.
I'd personally spend the money on an EM Racing one, much better quality.

I like em but then I have to give up my privacy cover.

well let me know i wanna see what it looks like id concider the swap as well

yea, the i wont really be needing my privacy cover, because its going to be strictly track, but yea, yours is going to be daily, so that would make a difference.. lol. I wanna see the wiring diagram too! :yeah:

For now it's a daily. It will never really be dedicated to just one thing but a simply good all around car.

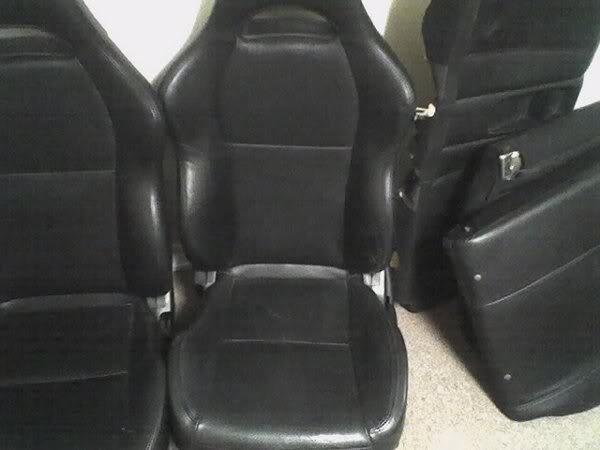

Bought these off of JDMhoer today.

Attachment 14614

They are now half apart in my living room and I think I might get them in tomorrow.

LOOKING SEXY!!!!!!!!!!! I love it all bro. the cluster is something a lot of us are gonna want to do as well.. i wont lie. I also love the nsx caliper swap but what alternatives are there for the rear calipers around the same level? Im interested! lol. You must come out to one of our meets next year!

There's lots of calipers you can use in the rear. I choose to go with RSX calipers and 10.3 EP3 discs.

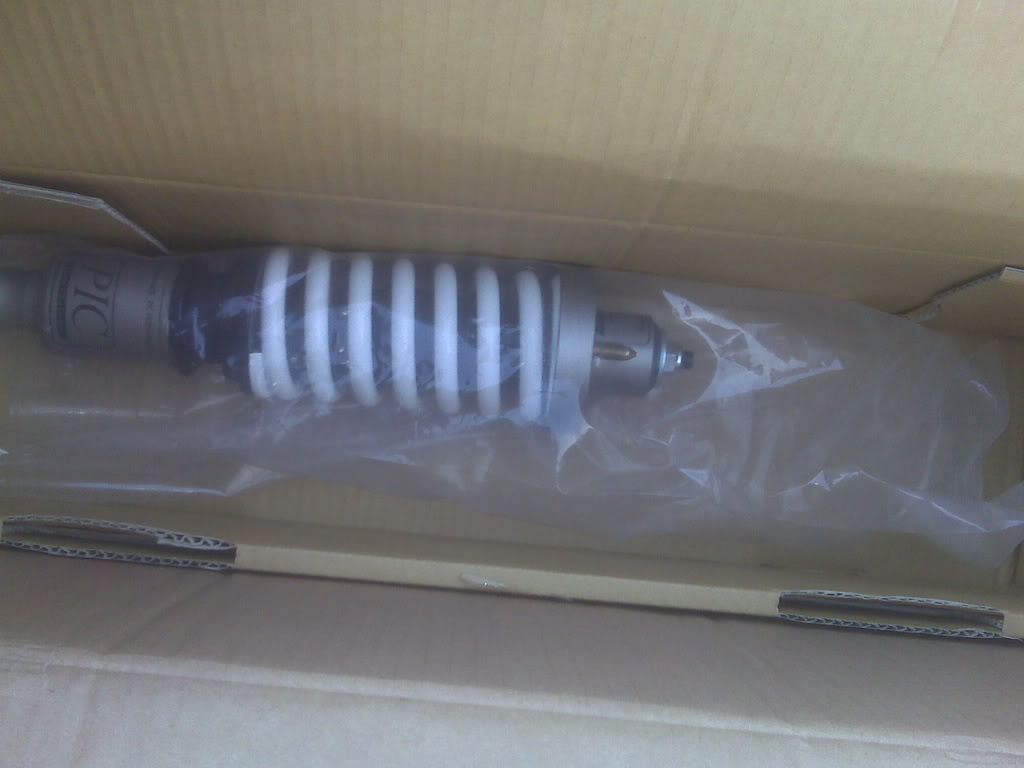

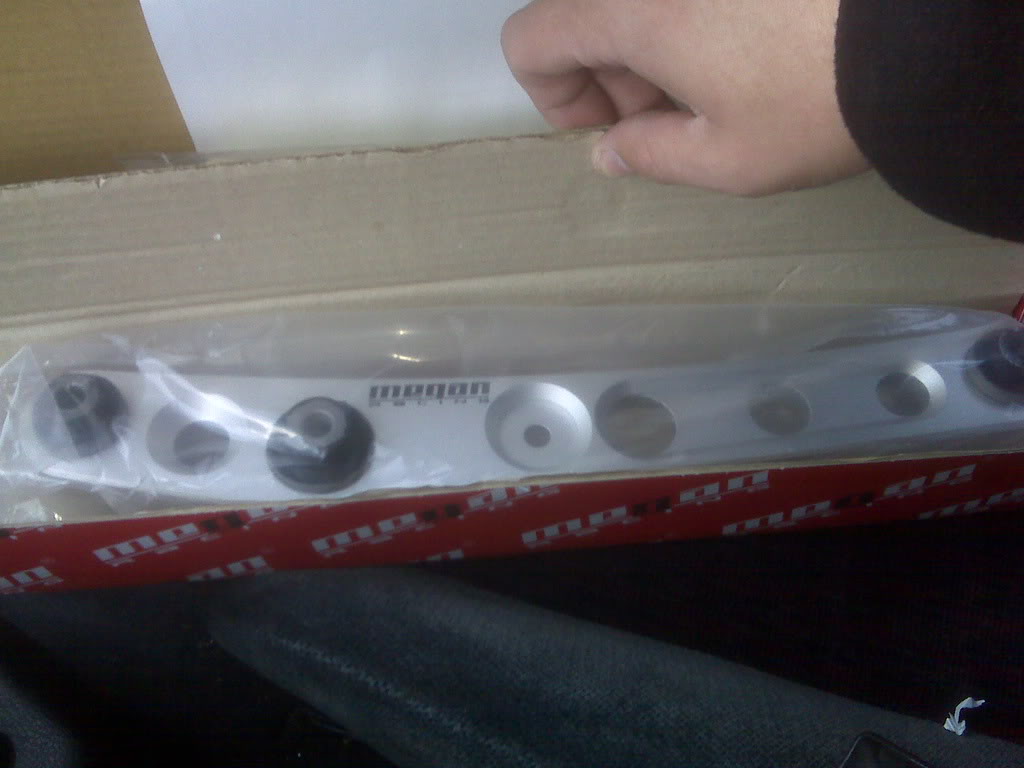

BAM! PICs are here along with the Megan rear LCAs.

Attachment 14580
Attachment 14581

(sorry about the cell phone pics) Installing them this weekend.

iv got the LCa's in red!! sexy

lol its funny cause iw as actually ordering myself some in blue soon :P I think some nice DA's are gonna be rolling out in the summer this year :O

build is looking solid bro. keep up the good work and the updates! :P

great build so far man, cant wait to see this car on the road in the spring

It's on the road just looks like ---- cause I haven't washed it in months.

Can't wait to have it back in summer mode.

Started to install the PICs last night, no good pictures because I forgot my camera.
Rears out:
Attachment 14529

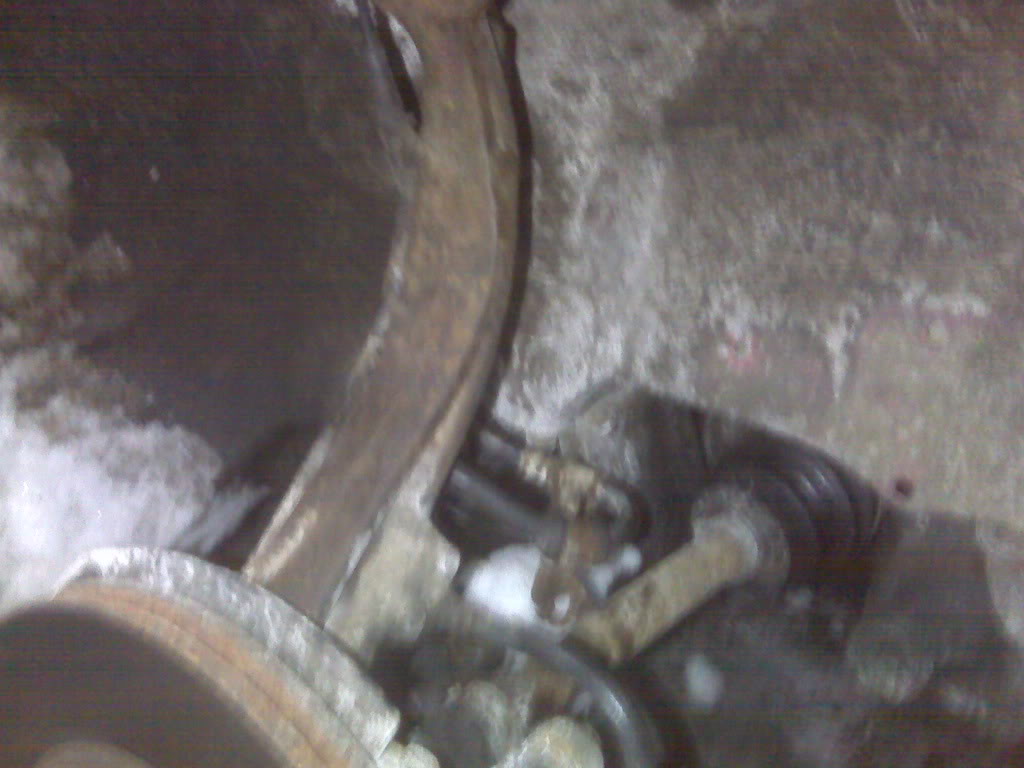

Fronts out:
Attachment 14530

Then we hit a snag, I was sold the wrong forks! ARG! Partly my fault for not noticing when I bought them but still. I'm not dropping any names yet, going back there when they open this morning and hopefully get the right ones or a refund.

So for now I'm riding on PICs in the rear and Teins up front lol. Also the rear is a lot lower because the PICs are shorter, tucking tire in the rear and like 3" up front LOL.
I'll be getting the front PICs in tomorrow, hopefully won't have a problem getting the right forks today. I also need some bolts and washers to hook my sway bar back up with the Megan arms. The arms were the same length as stock too.

On the plus side, the PICs are friggin STIFF!!

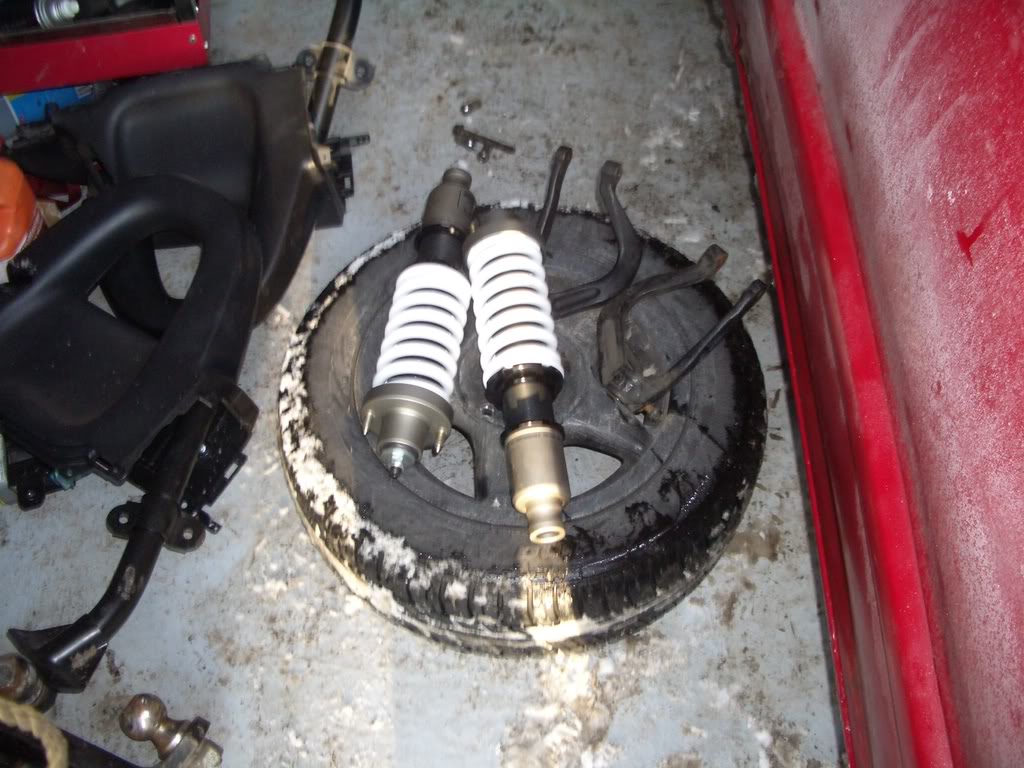

Got the front PICs in today. Had to argue a bit to get the proper forks but I got them.

Attachment 14499
Attachment 14500

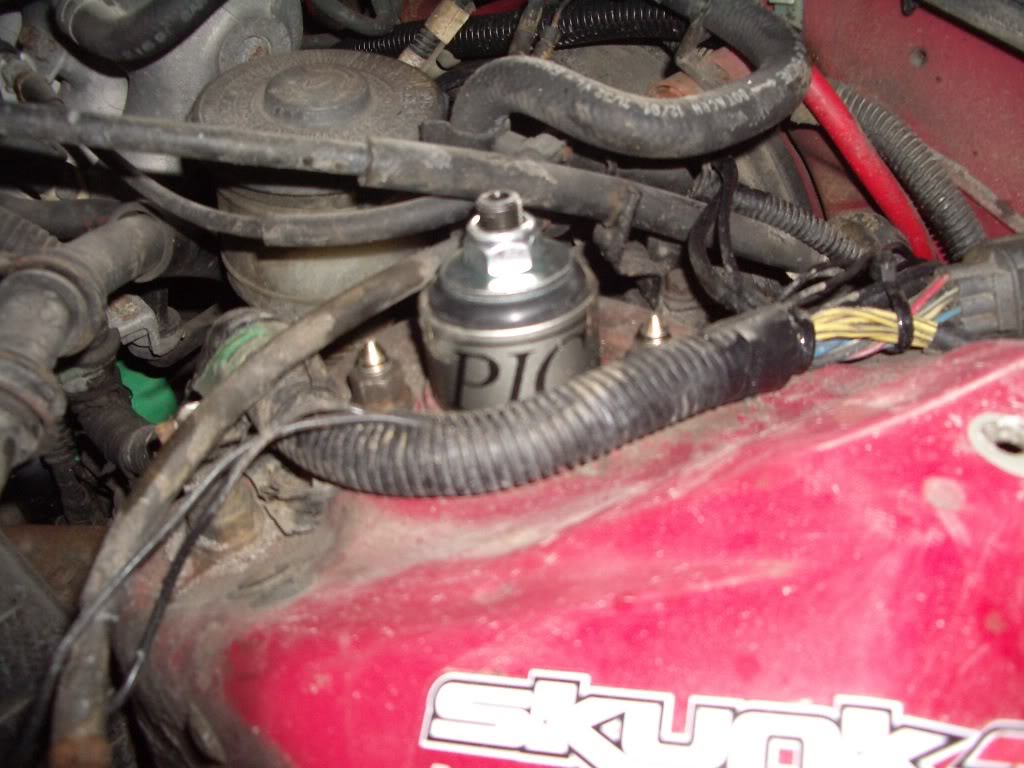

Extended top hats on the front
Attachment 14501

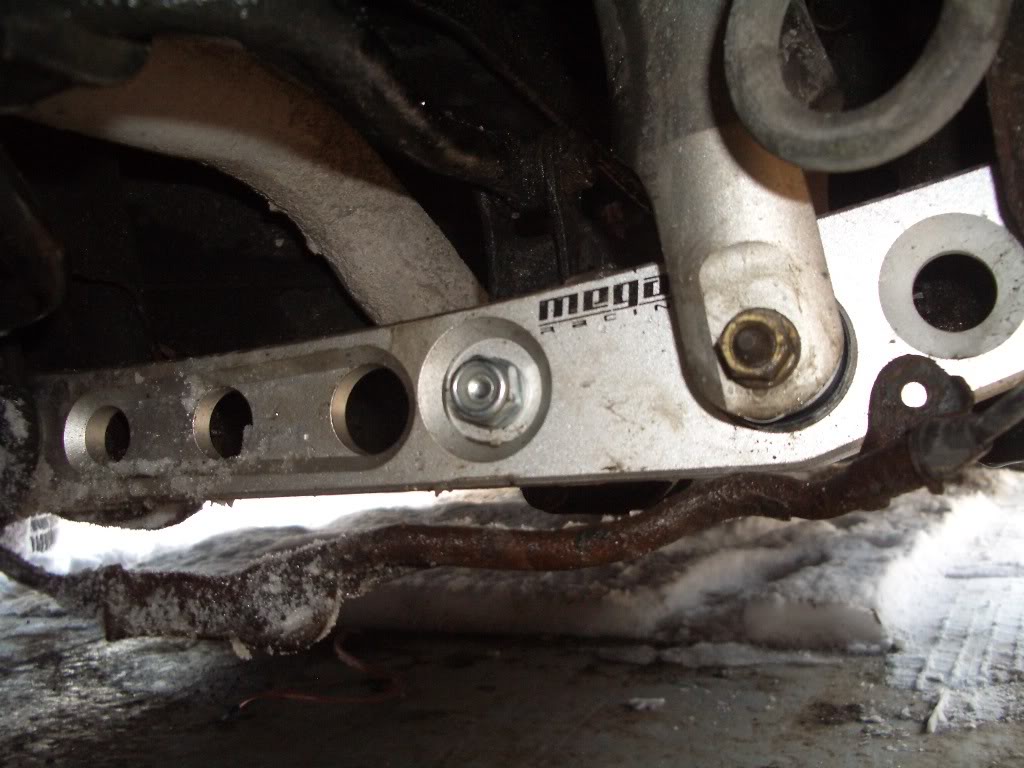

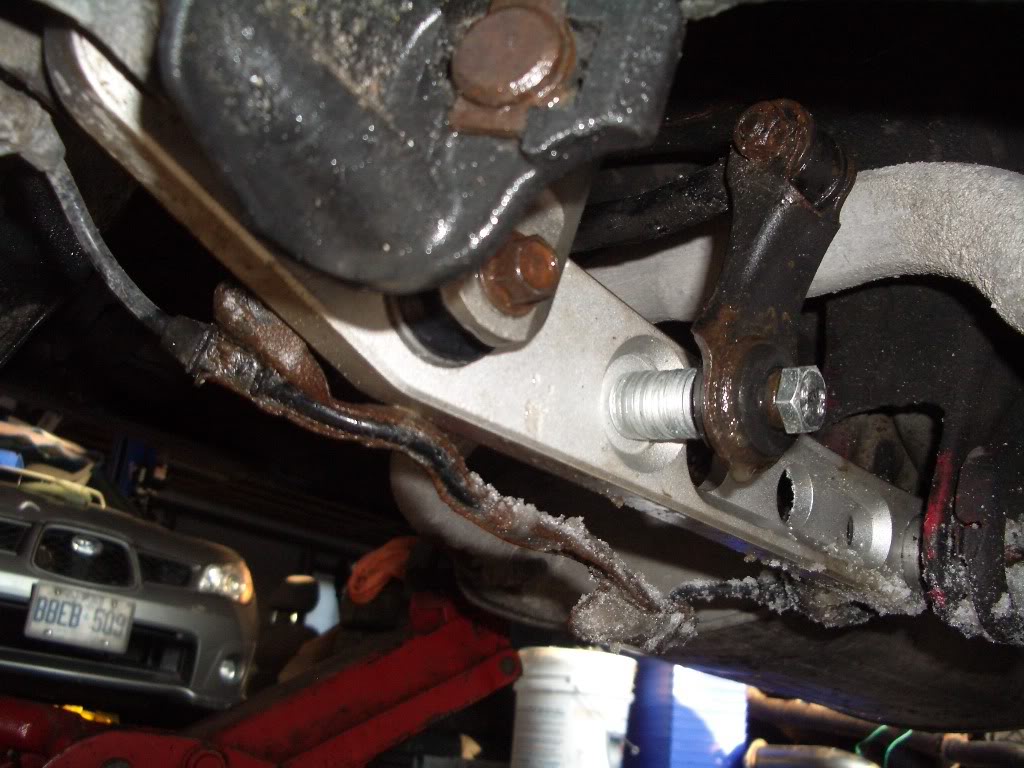

What I had to do to bolt my sway bar back up again. It's ghetto but it works.
Attachment 14502
Attachment 14503

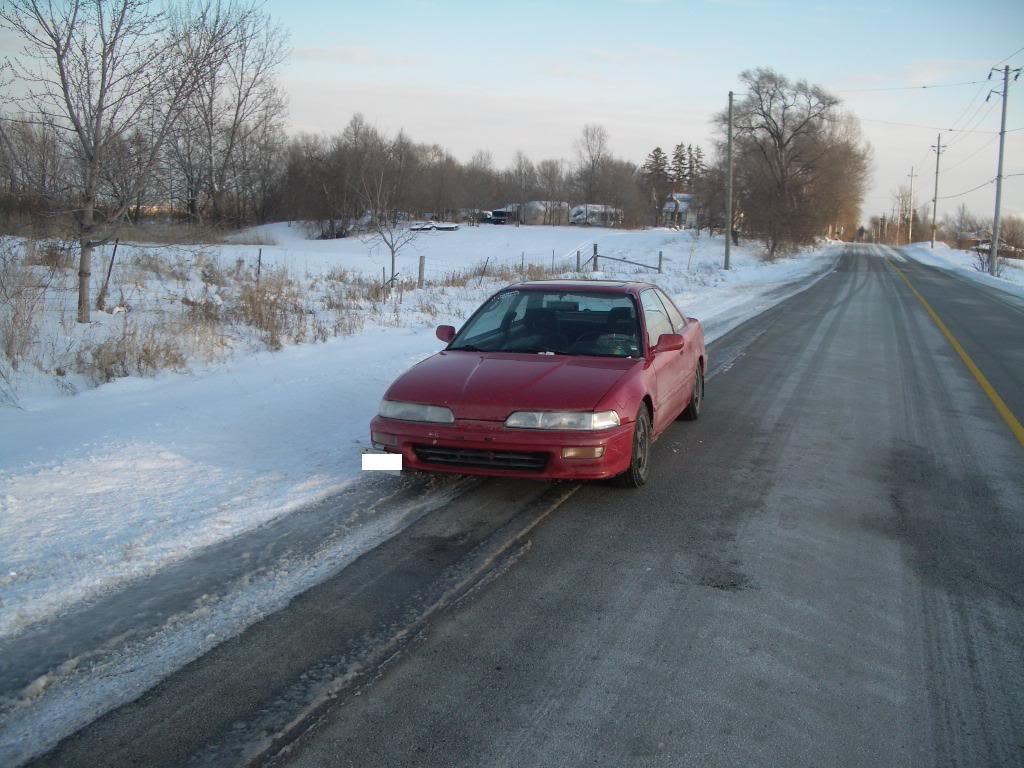

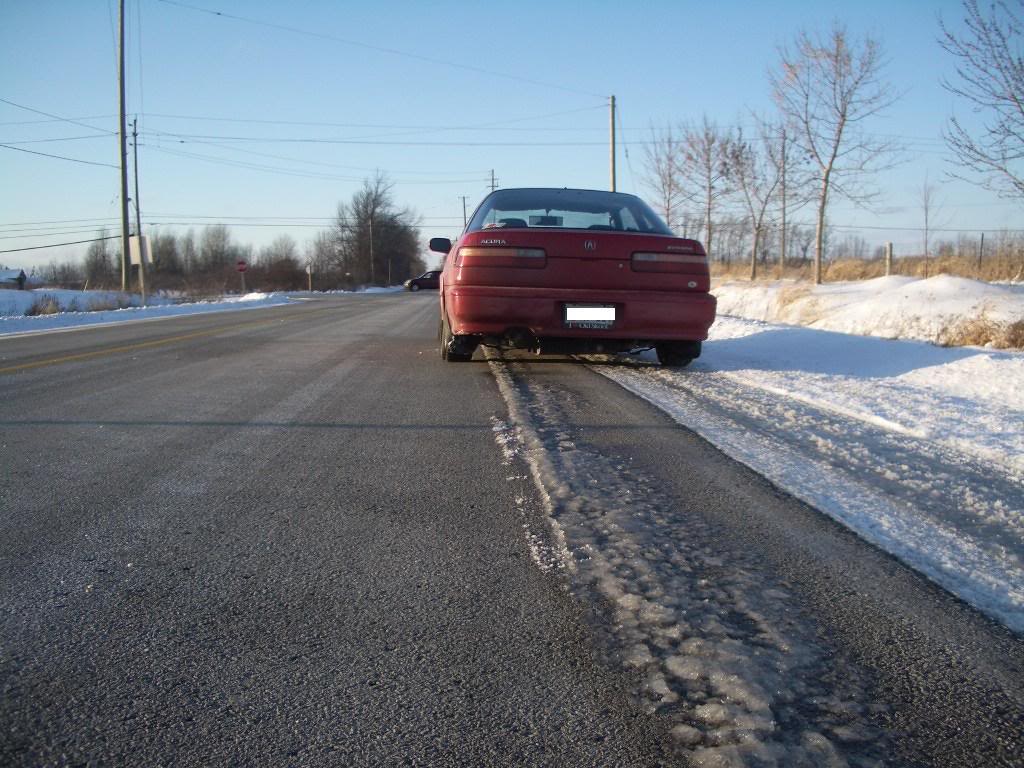

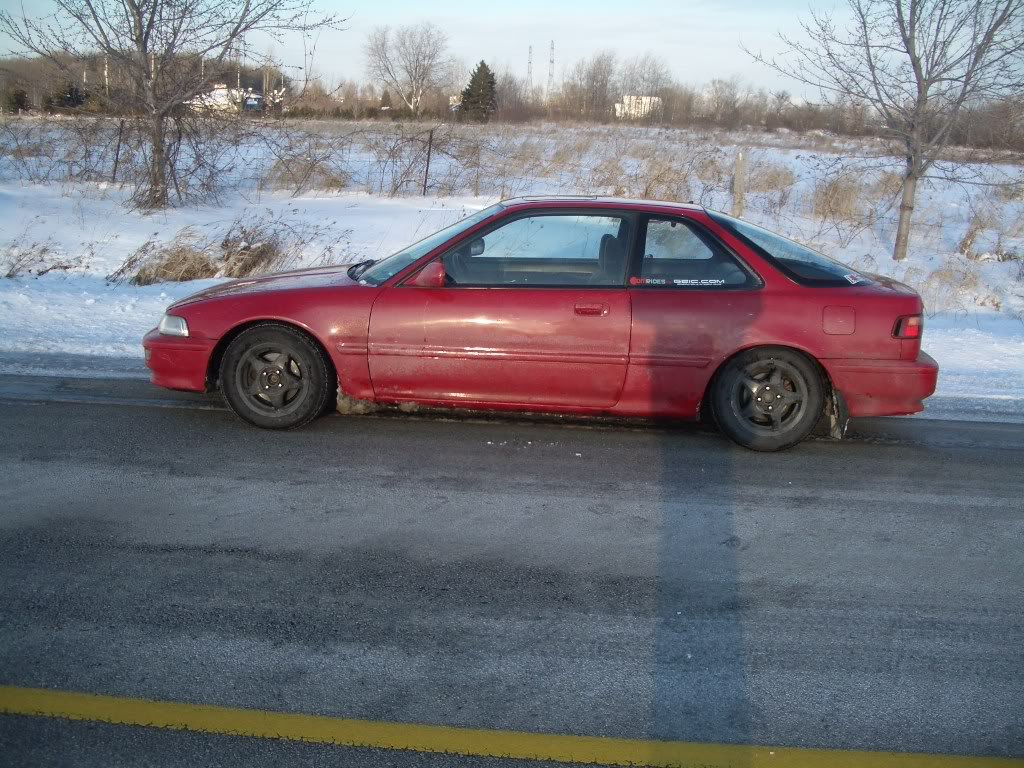

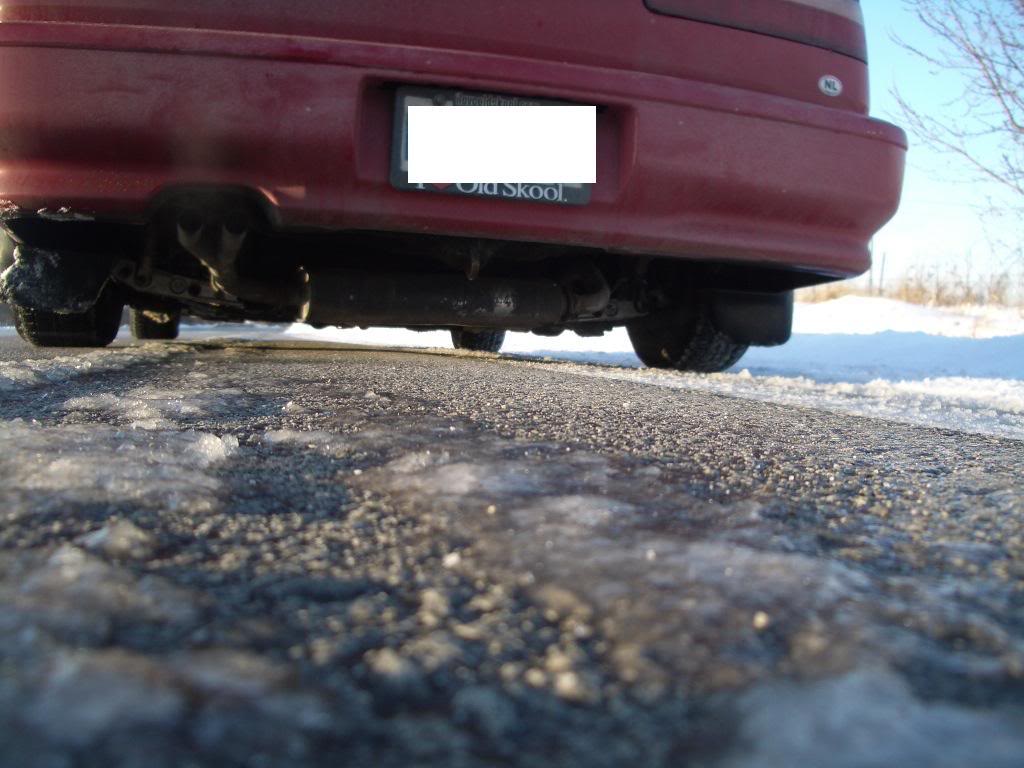

Couple over all pictures of the car.
Attachment 14504
Attachment 14505
Attachment 14506
Attachment 14507

The rear is lower then the front but I'm too lazy to adjust it and it's winter time. Come spring it will come down a bit lower.

Oh and remember, when driving, you've got to listen to good music.
http://img.photobucket.com/albums/v8...c/IMGP4482.jpg

who sold you the forks?
what was wrong with the old ones?

HOLAAY dats slammed i love it ..lol
lookin good bro

Total JDM, it took a bit of fighting but I got the right ones.
The forks they sold me were DC forks. DA forks have a smaller hole for the shock since the shock mount is smaller.

The car was sitting on ITR spec Teins, hence why I need new forks.

Thanks.
She'll be really slammed come spring.

nice drop homie:yeah:

Thanks, need to be evened out though.

Did a junk yard run with Tristan and some other people today. I forget the other guys names lol.

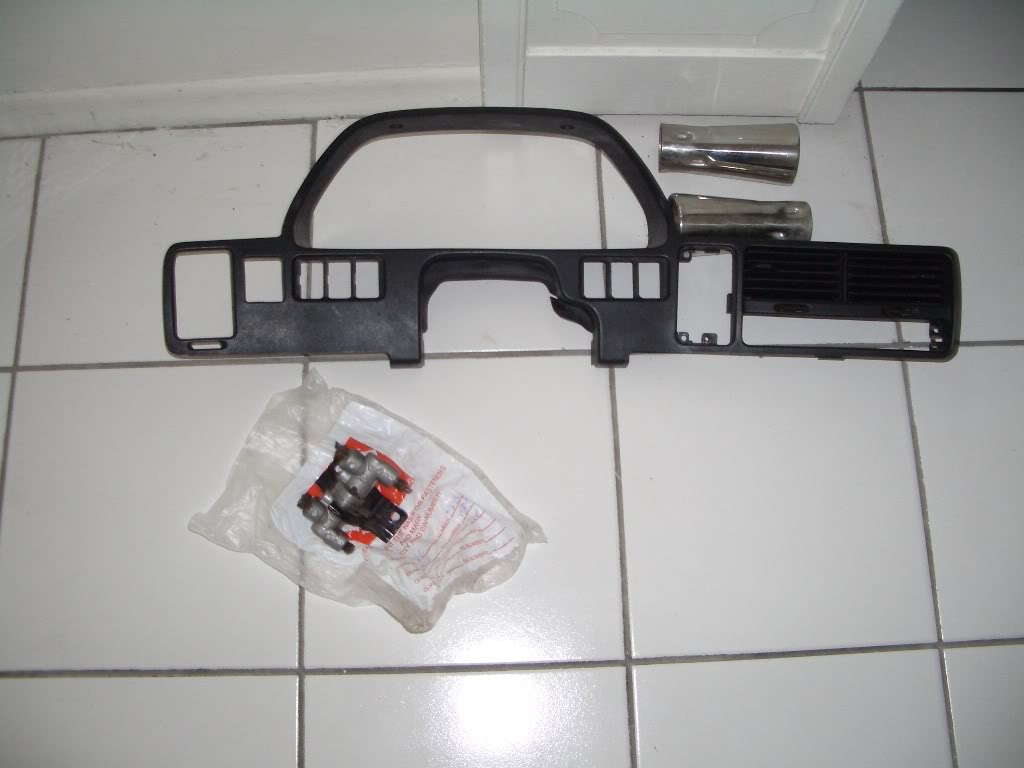

I picked up a new cluster trim piece (had so many friggin problems getting them out, finally got one out in one piece), passenger side door lock switch trim, 4040 prop valve and OEM exhaust tips (w00t).

Attachment 14489

MINT!!!!

abs delete FTW!
