** I am not claiming this is a DIY article. Just a play by play that is fairly thorough**

Purpose: As I start cleaning this car up and adding mods, I wanted to make sure the car was secured with a decent 2 way alarm.


Total Cost:
Alarm + Install @ Selective Sound in Mississauga.

PYTHON 902 2 WAY ALARM SYSTEM $299.99 INSTALLED as per his GTcars.ca post.

Time: Total time (I only snapped pics) was 2.5 hours for 2 professional installers.

Difficulty: There is no doubt that this is for an experienced DIY. The tricks that the staff at Selective Sound used to get it done was awesome. My follow along, pics and notes does not do them justice. These guys were quick and very professional.

Play by play

First off, I was very fortunate that Davis & Max allowed for me to capture the images of their work. They have a nice customer waiting area but they knew I wanted to document this for other teg owners.

Things to note. The alarm brain is not shown in these pics as to where it was placed.

2 installers worked on the car. I did not do the work.

This is not an easy DIY project, so I suggest you contract Davis @ Selective Sound. This is for those who want to take a stab at it.

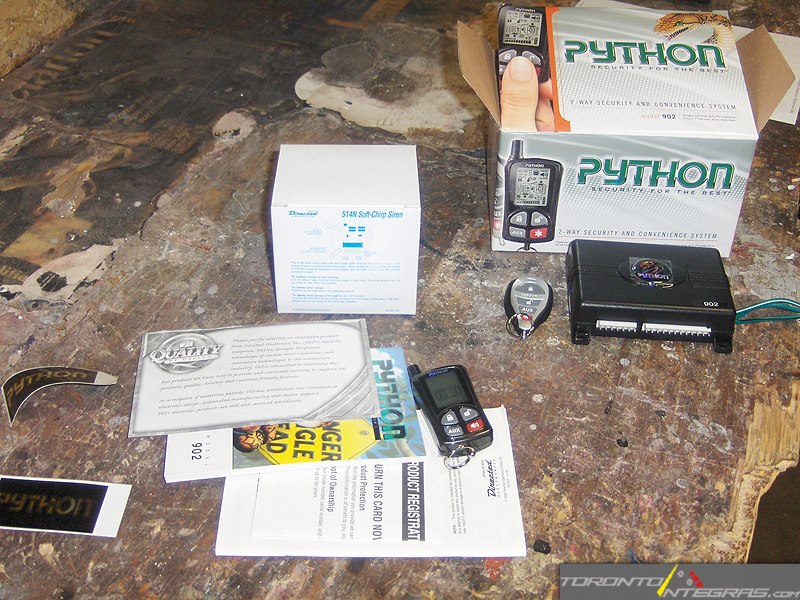

What comes with the Python.


The key fobs.

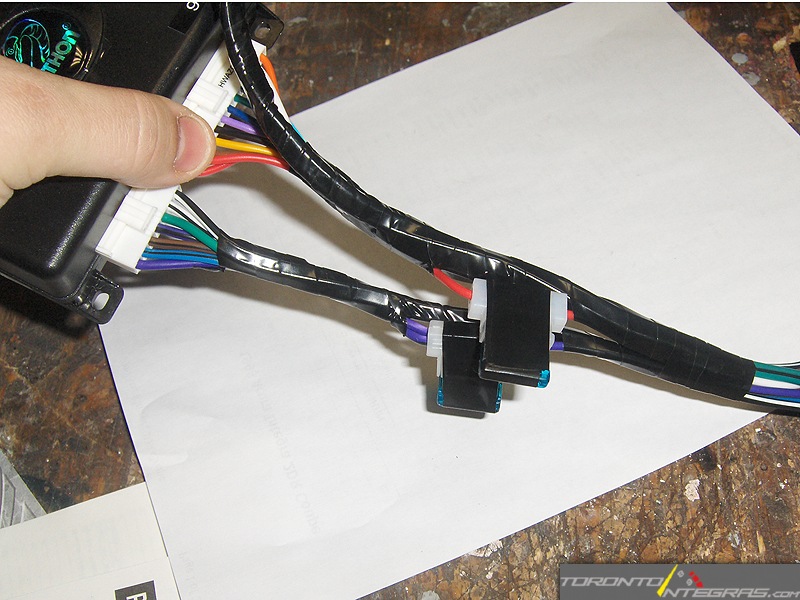

The brain all wired up and ready for the install.


Tape on the fuses so they don't vibrate out.

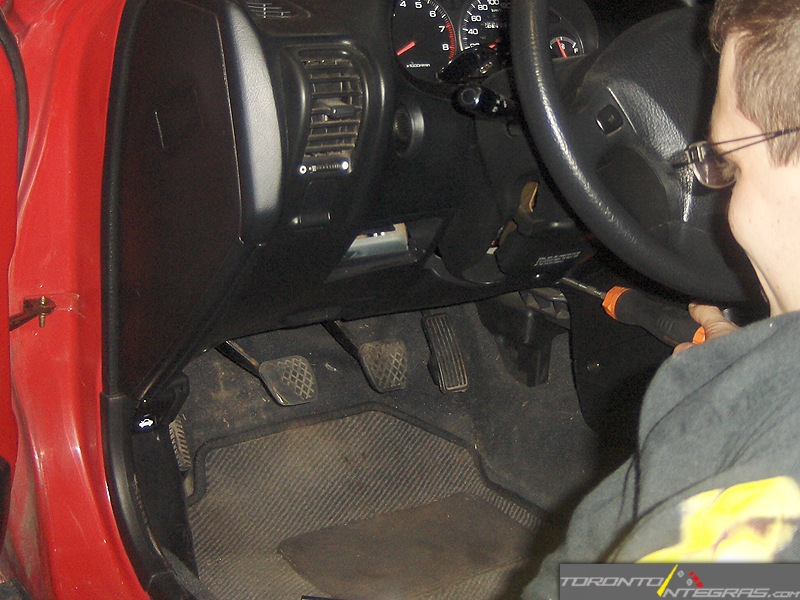

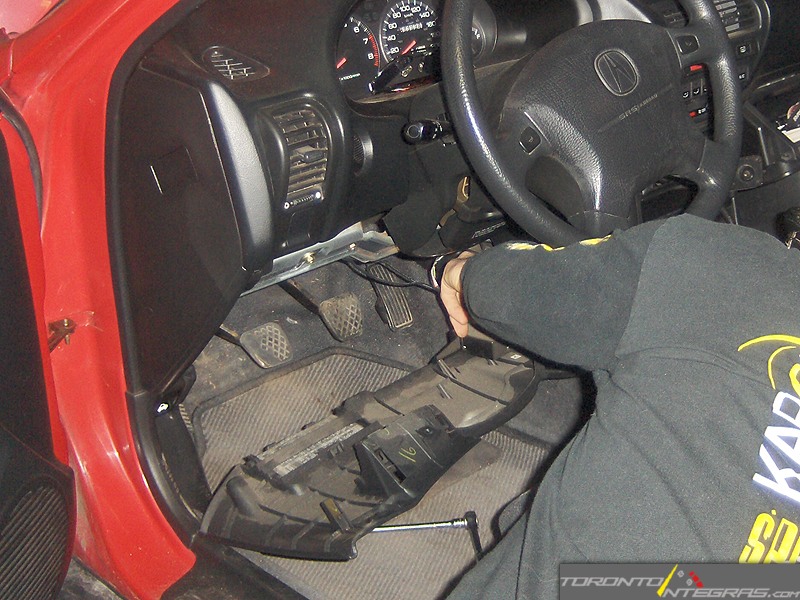

Removing lower dash peices, Phillips screwdriver will do

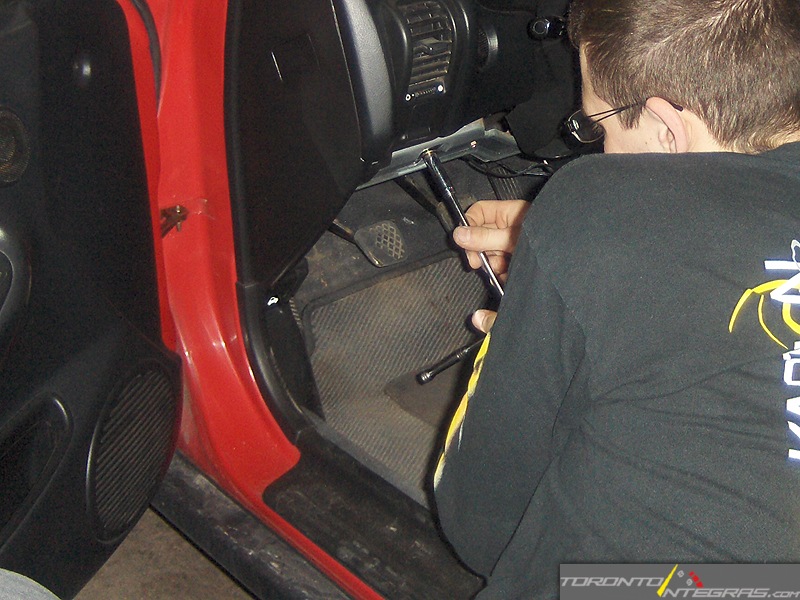

Removing lower dash brace, 10mm ratchet.

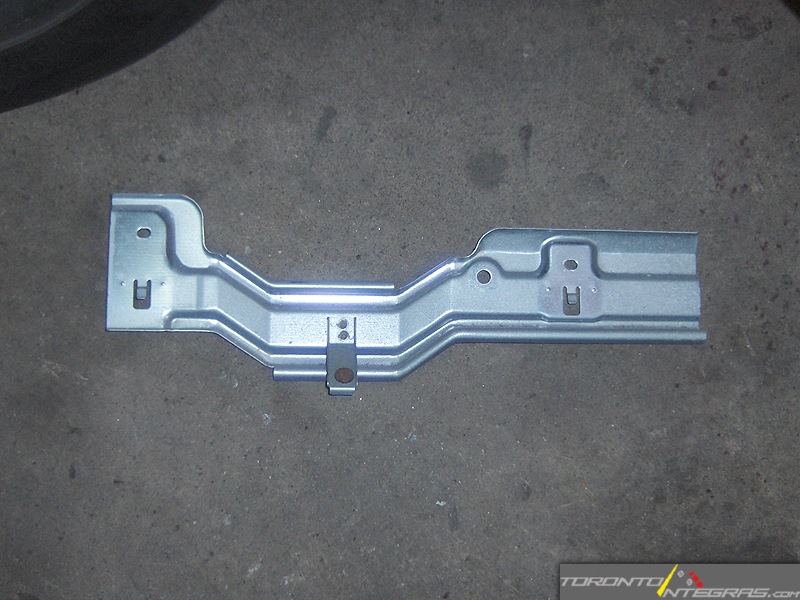

Lower dash brace.

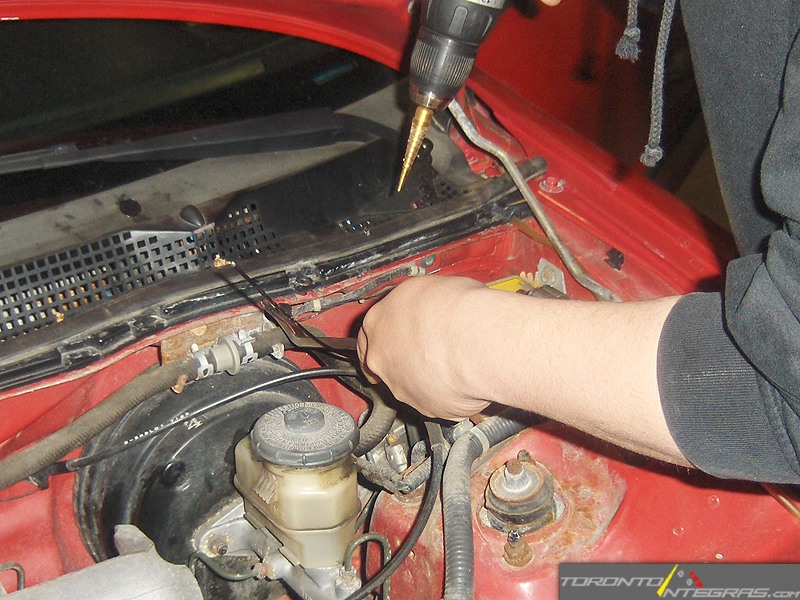

Drilling for hood pin.


The hole for the hood pin.


Installing the hood pin.

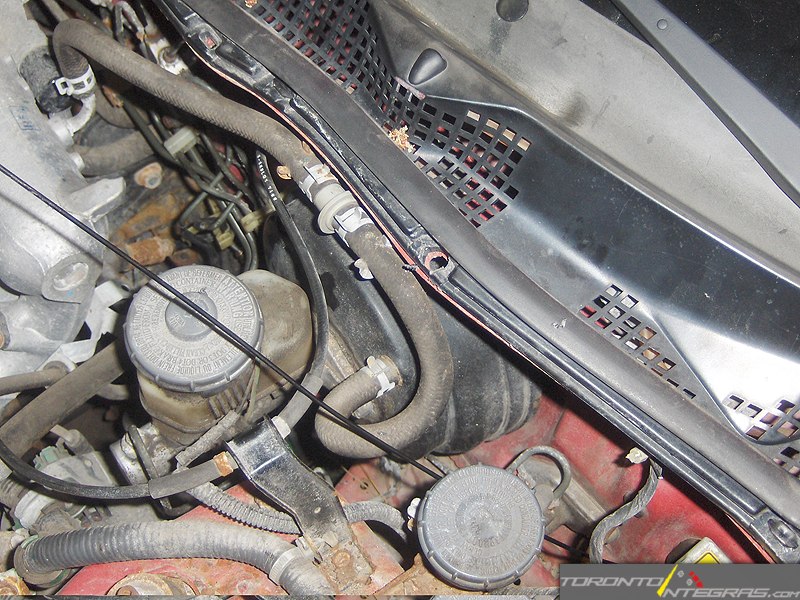

These next 3 photos show the fuse box area before the install.






Removing a nut and bolt to mount the alarm horn.


Stripping wires. Take your time as to not cut right through.

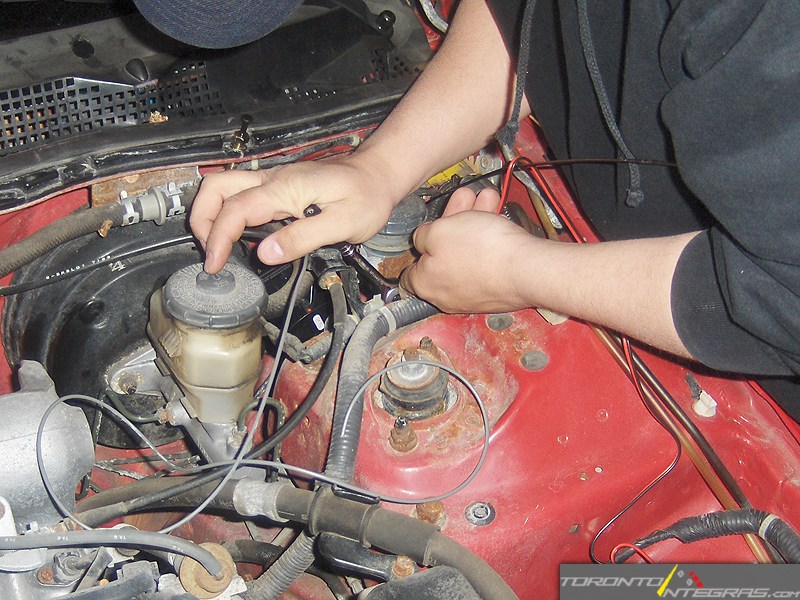

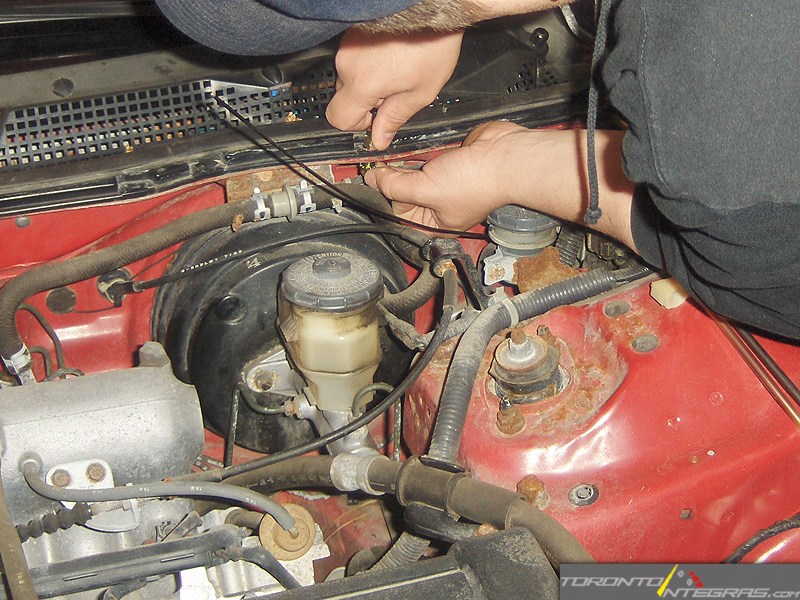

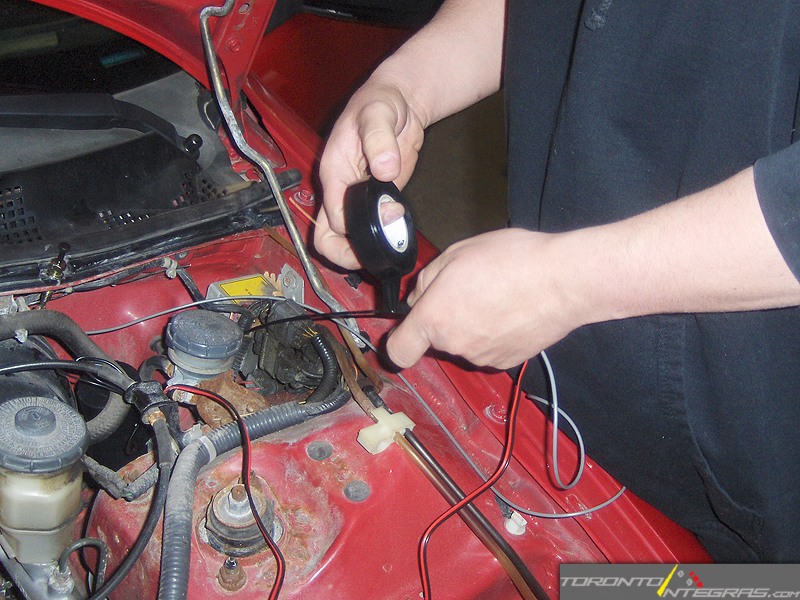

Passing a coat hanger through the firewall into the cabin. This includes the horn wires and the pin wires.

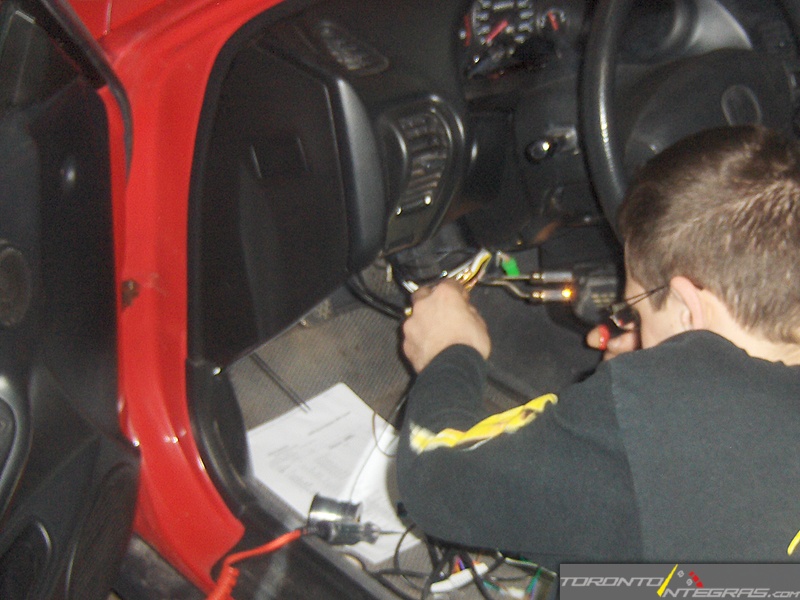

Soldering ignition wires.


Smiling at his nice job. lol

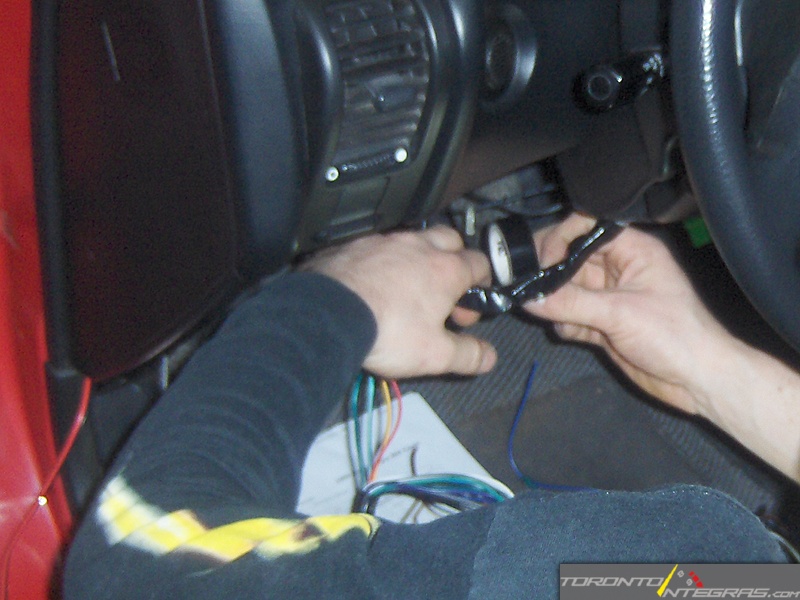

Taping it all back up.

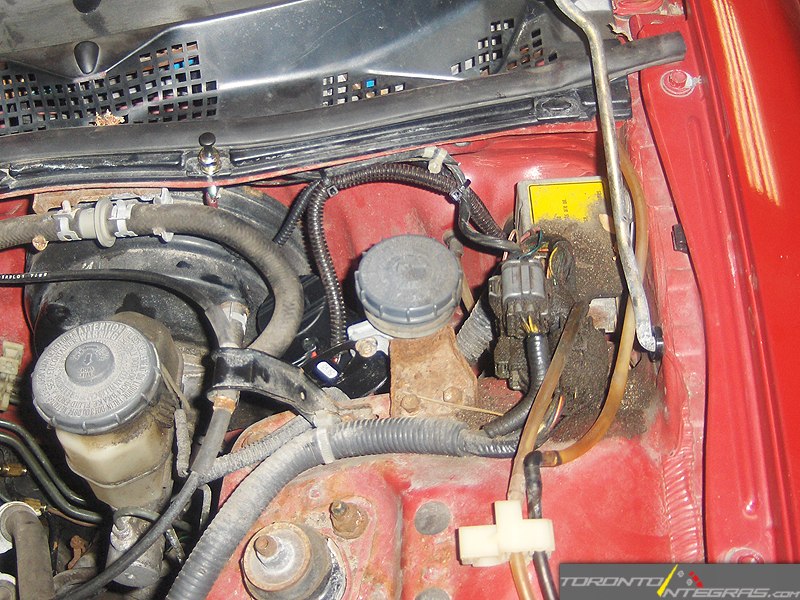

hood pin and horn all installed.


Pulling the kick panel off to access the door and trunk wires.

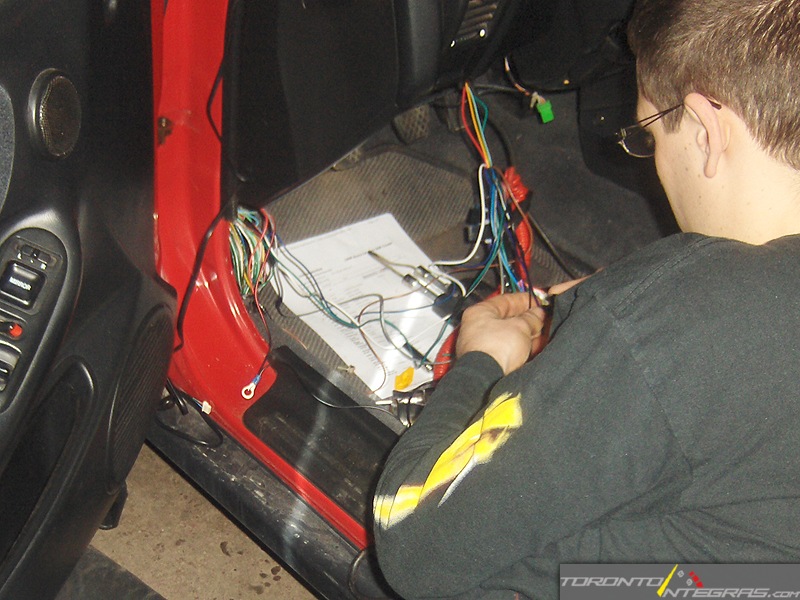

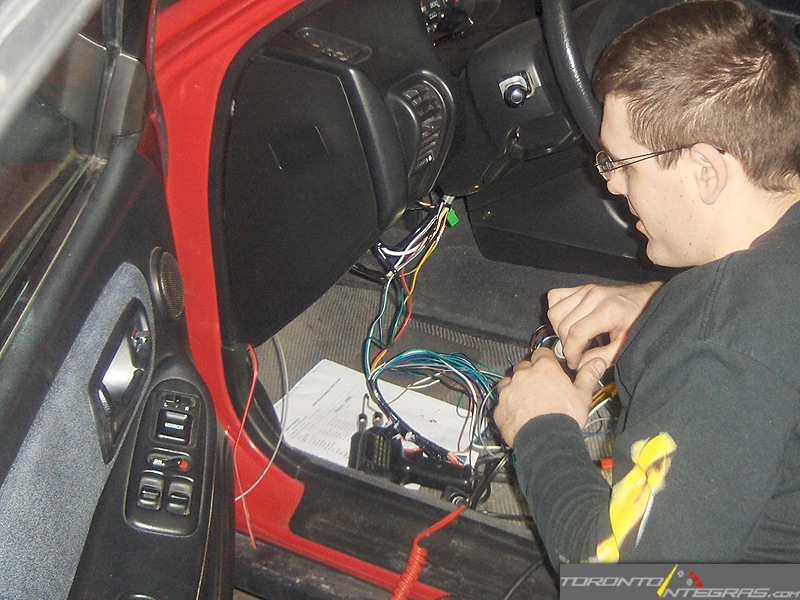

More wiring for the doors and trunk.

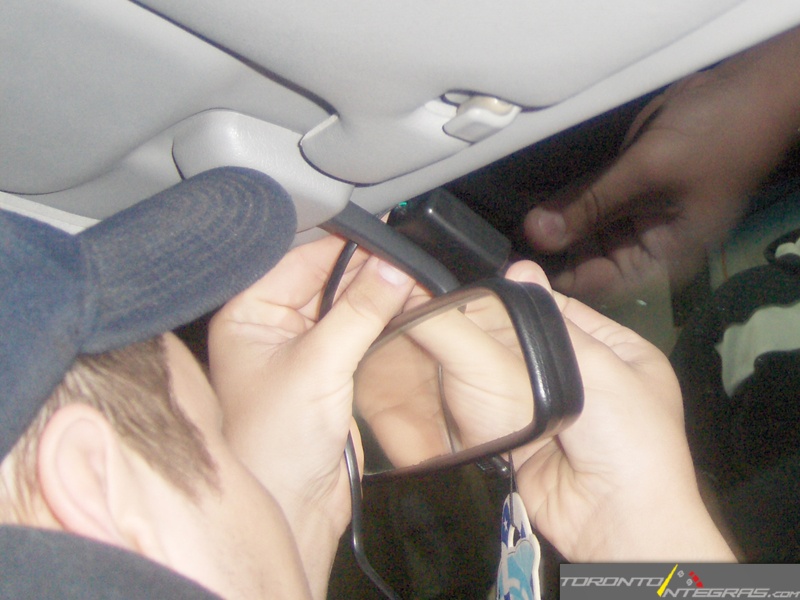

Remote receiver installed just behind the rear view mirror.


Wire tuck behind the trim.

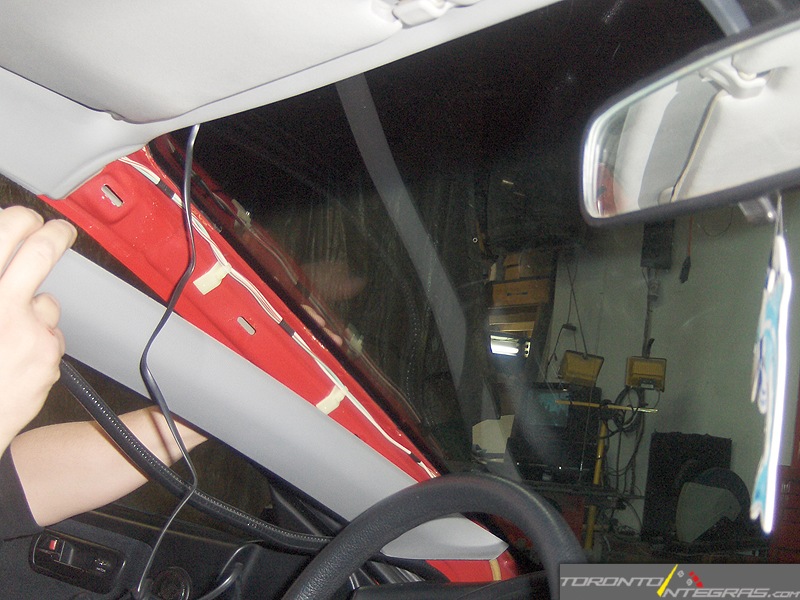

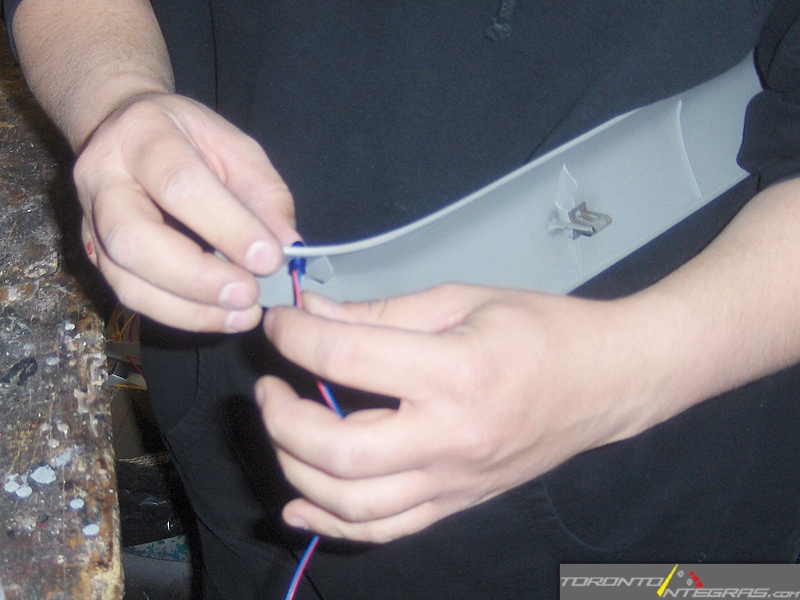

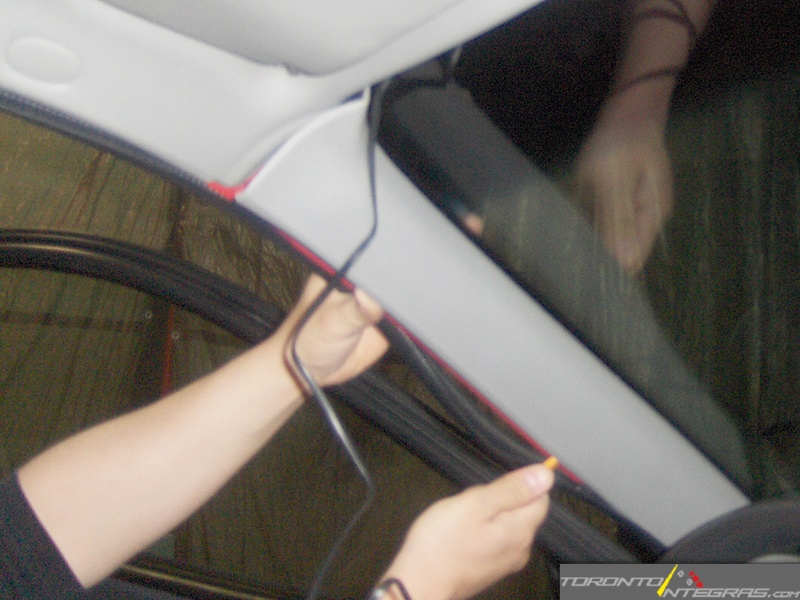

The next two pictures show the a Pillar being opened to hide the receiver wire and the installation of the led.




Wires being zip tied under the A Pillar.


Wiring diagram. This is straight out of the manual.


Wiring diagram simplified (what the installer used)

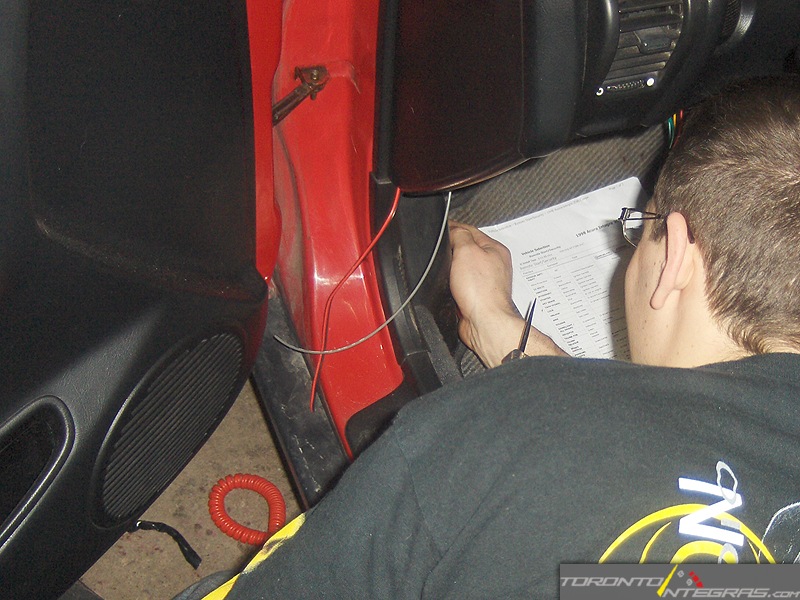

Door and trunk wires again. Remote lock on hatch was discovered to be dead.


Tester trick with a knife

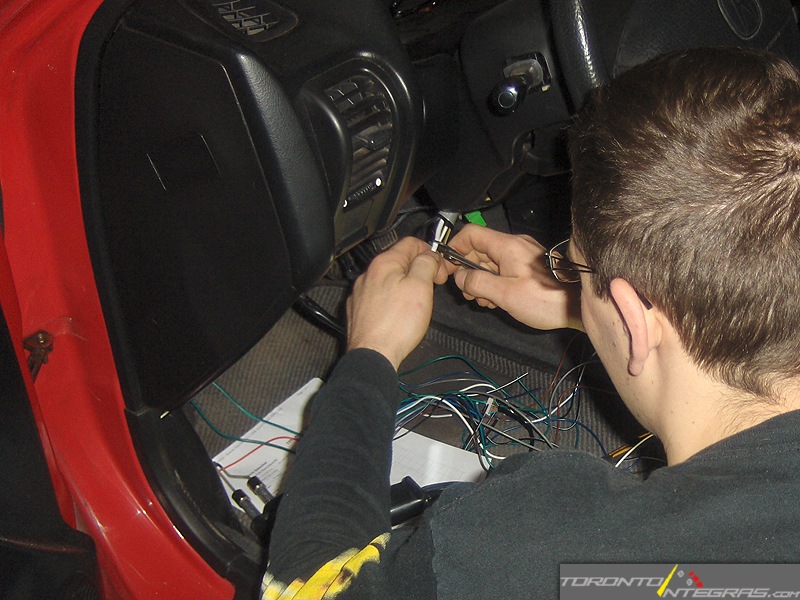

Using the above diagram, tap into the wires, solder, close up.


There next two pics show him taping it all back up.




The L.E.D. install.

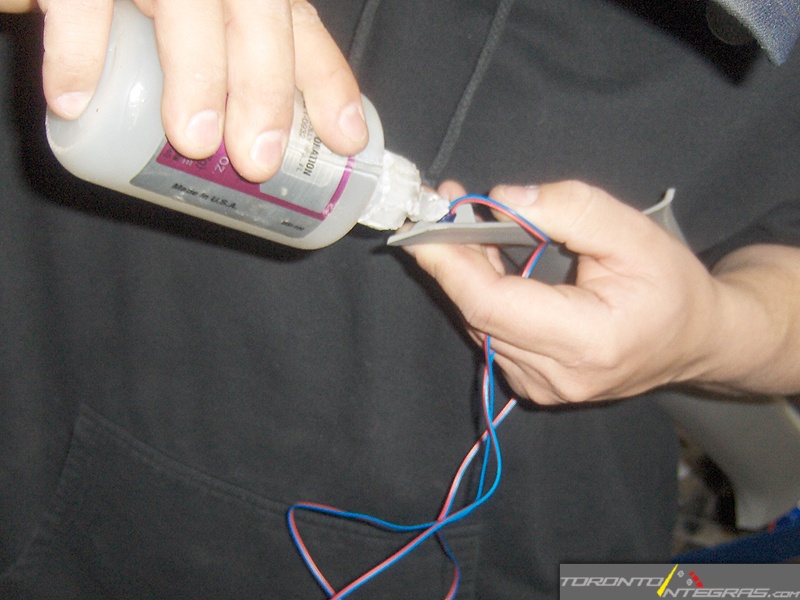

Glued in.


Fast curing glue and activator.

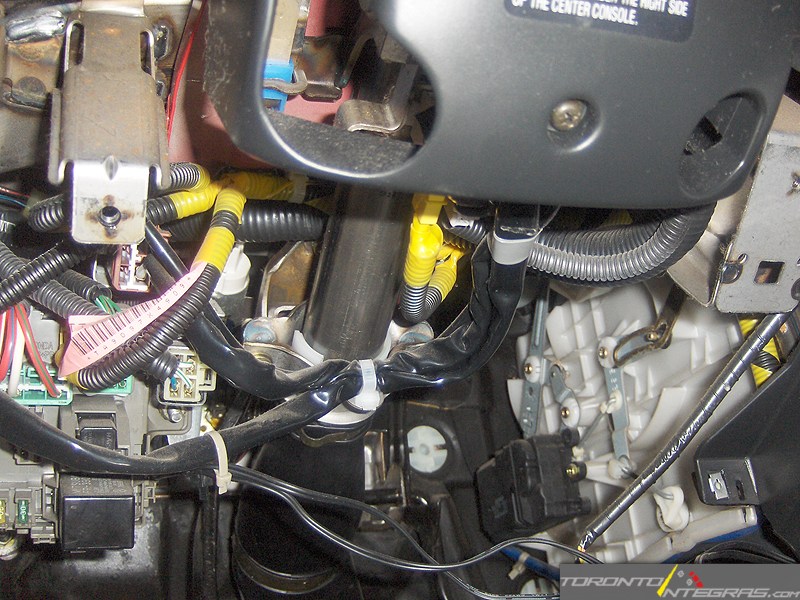

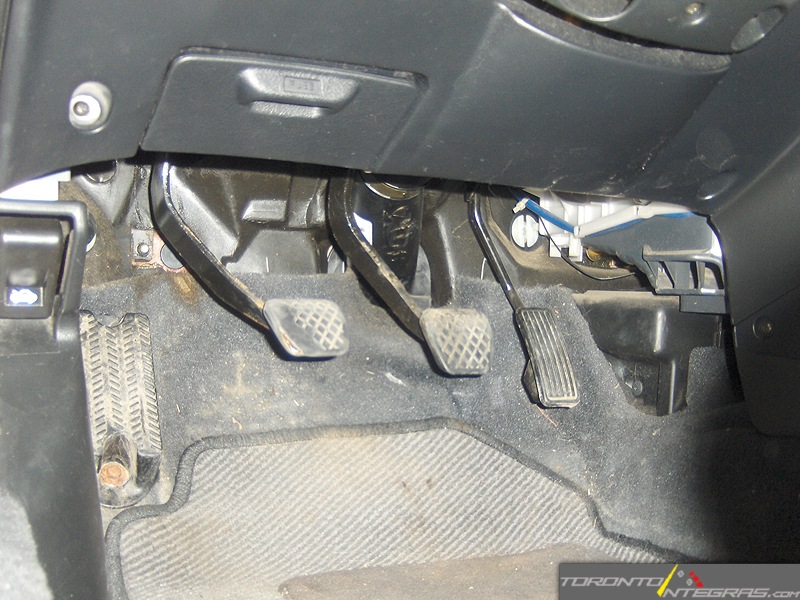

Here are three pics of everything all taped up and getting ready to put everything back together. Super clean install!!

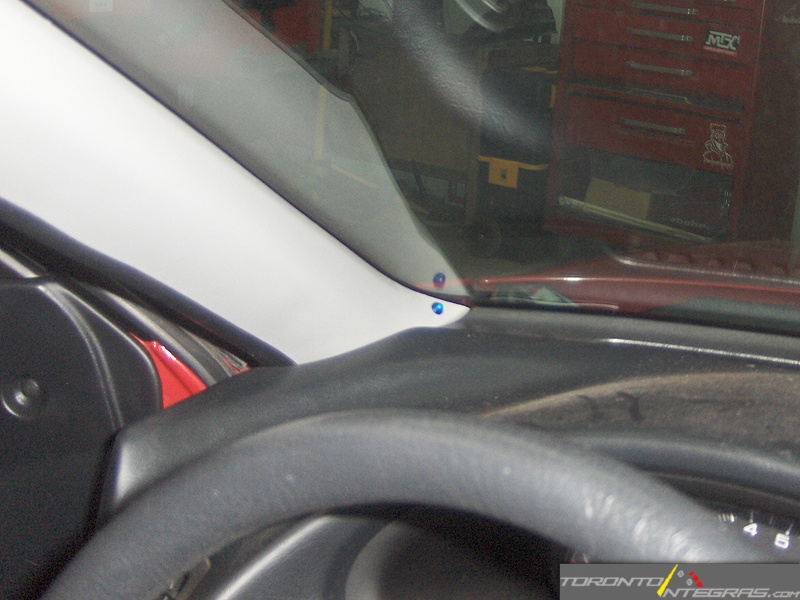

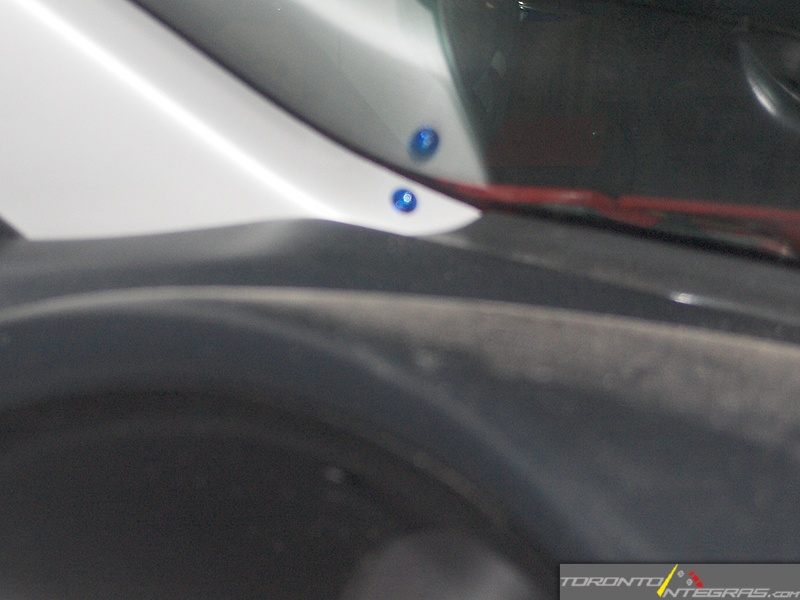

Warning L.E.D. all installed


All done, sorry no pics of where the brain ended up. The thieves will have to figure that one out for themselves. lol


Blinking lights don't show up well in pictures. lol

2teg

ima come by and test this sucker out late at night

looks good. DIY don't look too bad though.

k1e1v1i1n

iTrader: (1)

lol nice i will turn up the sensitivity then and wait upstairs with a b b gun. lol

ls/vtec

You should of went with at least compustar, Python is really cheap

2teg

you will need more than a BB gun to stop me little boy.

selective sound

iTrader: (1)

Actually the Python is not a cheap alarm at all, it is made by the same people who make Viper and it has way more built in features than Compustar does.

KjB

what makes the python more better then the compustar??

k1e1v1i1n

iTrader: (1)

he said way in the post directly above yours

ls/vtec

Whatever helps you sleep at night

selective sound

iTrader: (1)

It has a built in shock sensor that you can adjust through the remote, built in strater kill, built in relays so you can hook up any type of door locking system without adding extra parts, vehicle recovery system for anti car jacking, 6 channels and 5 external outputs.
