Just wondering if anyone of you have installed this wheel into their Tegs? I need a new wheel (Black interior conversion) and I really want the JDM ITR SRS wheel, but I know it's really hard to install.
I know Blue Dragon on here has it installed but that's it.
Anyone else?
Thanks,
-Tony
I know Blue Dragon on here has it installed but that's it.
Anyone else?
Thanks,
-Tony
Senior Member
Its not hard to install at all. If your car is OBDII, its a direct plug and play type deal. If your car is OBD1, then you have some fiddling around to swap the airbag connectors.
You know you want one, what are you waiting for
PS, make sure you get the euro cluster too
You know you want one, what are you waiting for
PS, make sure you get the euro cluster too
Lol, I do want one. I have the JDM ITR cluster in my car. MY car is OBDI, that's why i'm afraid of installing it. I'm looking for someone who has done it before to install it for me whenever I get one. I'd be scared of blowing the airbag.
Did it affect your turn signals? I was reading over on T-I.net that some people lost the auto retract feature on their turn signals.
Did it affect your turn signals? I was reading over on T-I.net that some people lost the auto retract feature on their turn signals.
Senior Member
If you break the tabs on the cable reel, it doesn't affect the auto cancel. I didn't break the tabs on mine, so one side would cancel early, and the other side would cancel late because the reel doesn't fit exactly centred unless you break the tabs.
Haven't you ever gone over 180km/hr? You need the Euro cluster 260km/hr FTW
Haven't you ever gone over 180km/hr? You need the Euro cluster
260km/hr FTW
Post Whore
hey wayne, can you post up some more pictures of the cluster.
i have an AUDM cluster, but i have different pictures than you, i dont'have a seat belt light up in the top right corner.
i have an AUDM cluster, but i have different pictures than you, i dont'have a seat belt light up in the top right corner.
Senior Member
Quote:
i have an AUDM cluster, but i have different pictures than you, i dont'have a seat belt light up in the top right corner.

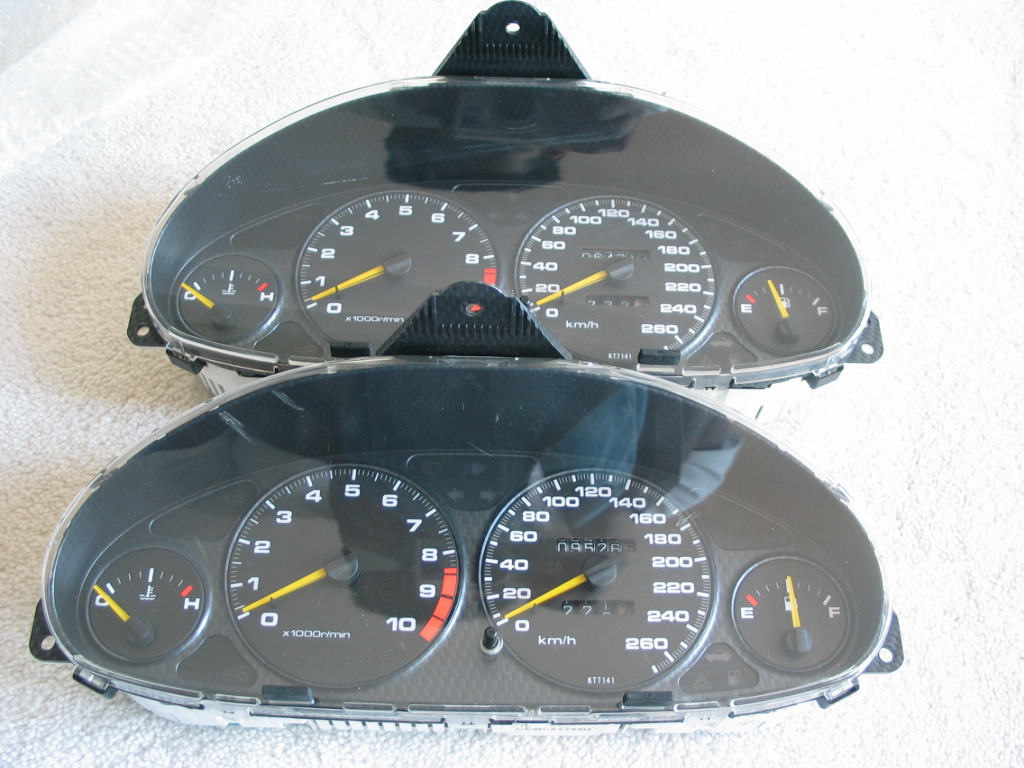

I swapped some parts to get it working correctly, this is what the original looked like, there was no seatbelt lightOriginally Posted by nautica_t YO
hey wayne, can you post up some more pictures of the cluster.i have an AUDM cluster, but i have different pictures than you, i dont'have a seat belt light up in the top right corner.
Junior Member
Ive got the non airbag wheel. It was pretty easy to install no problems except I havent hooked up the horn yet because of my lazyness. Anways heres a pic.
I transplanted all the JDM pods into my USDM cluster so everything would work properly without any hassle. When I got my JDM cluster, it had like 19,xxx km's on it, lowest i've seen.
I'd rather have the SRS equipped airbag so I don't get screwed over in the even of an accident...screwed by the insurance company that is for not having a functional airbag in an airbag equipped car.
I'd rather have the SRS equipped airbag so I don't get screwed over in the even of an accident...screwed by the insurance company that is for not having a functional airbag in an airbag equipped car.
Senior Member
No cruise, but I had my horn working
Post Whore
hey wayne,
i just swapped teh green film from my 01 itr. and everythign is working fine, only thing is i believe the speedometer is off by 7-8km/h.
but i don't have a maint. light anymore either.
did you do more work or whatsoever?
feel free to pm me.
i just swapped teh green film from my 01 itr. and everythign is working fine, only thing is i believe the speedometer is off by 7-8km/h.
but i don't have a maint. light anymore either.
did you do more work or whatsoever?
feel free to pm me.
Is there a reason why you guys swap the films instead of the pods themselves? Swapping the pods guarantees all lights and indicators work in your car like it came from factory, only the gauge pods are of the newer ones you want.
I've never swapped the film before for anyone...just curious.
I've never swapped the film before for anyone...just curious.
Post Whore
swapping pods is like swapping green film. thats essentially what you are doing.
by swapping the pods. what you are doing is just using the USDM casing. where as if you toattly dismanatle the cluster, in the end, its just a casing right? no different, from usdm, jdm, cdm, audm, edm.
the only reason i changed my film is because the cluster was orginally a 98 or something and its obd1 appearantly, and once i threw on my obd2 green film everythign worked perfectly.
so by swapping the pods. you are essenitally doing the same thing, instead of physiclly moving the green film, you are putting the pod on the green film now.
by swapping the pods. what you are doing is just using the USDM casing. where as if you toattly dismanatle the cluster, in the end, its just a casing right? no different, from usdm, jdm, cdm, audm, edm.
the only reason i changed my film is because the cluster was orginally a 98 or something and its obd1 appearantly, and once i threw on my obd2 green film everythign worked perfectly.
so by swapping the pods. you are essenitally doing the same thing, instead of physiclly moving the green film, you are putting the pod on the green film now.
Quote:
by swapping the pods. what you are doing is just using the USDM casing. where as if you toattly dismanatle the cluster, in the end, its just a casing right? no different, from usdm, jdm, cdm, audm, edm.
the only reason i changed my film is because the cluster was orginally a 98 or something and its obd1 appearantly, and once i threw on my obd2 green film everythign worked perfectly.
so by swapping the pods. you are essenitally doing the same thing, instead of physiclly moving the green film, you are putting the pod on the green film now.
Originally Posted by nautica_t YO
swapping pods is like swapping green film. thats essentially what you are doing.by swapping the pods. what you are doing is just using the USDM casing. where as if you toattly dismanatle the cluster, in the end, its just a casing right? no different, from usdm, jdm, cdm, audm, edm.
the only reason i changed my film is because the cluster was orginally a 98 or something and its obd1 appearantly, and once i threw on my obd2 green film everythign worked perfectly.
so by swapping the pods. you are essenitally doing the same thing, instead of physiclly moving the green film, you are putting the pod on the green film now.
Gotcha, but then you'd have to swap over the indicator screens as well if the new cluster doesn't have something like your USDM cluster has right? Like you mentioned that you don't have the maintenance light anymore, so you'd have to install the bulb from your old cluster(if none is present) and then swap over the indicator screen that says Maintenance Required. No?
Post Whore
yeah thats the only thing I dont have. but otherwise everythign is fully functional. and besides maint. light i only use it for oil changes. but i do my oil change every 5k anyhow, so thats not even a problem, or after a weekend at the track.
but i have everything neverthless, abs, srs, door, engine light, oil light, signals. etc. everything..the whole nine yards..
and bonus yellow needles all the way to 260 ftw :d
but i have everything neverthless, abs, srs, door, engine light, oil light, signals. etc. everything..the whole nine yards..
and bonus yellow needles all the way to 260 ftw :d
Senior Member
I swapped the pods into my cluster, but its basically the same as swapping the green circuit board
Member
i have it in mine...
mine's a 99 so it was basic plug and play. the horn hooks right up so that was easy. I have the same problem Blue Dragon has with the signal cancellation. Other than that...it's probably my favourite mod. heh
mine's a 99 so it was basic plug and play. the horn hooks right up so that was easy. I have the same problem Blue Dragon has with the signal cancellation. Other than that...it's probably my favourite mod. heh
There's plenty to do outside my room but I choose not to!
^where'd u get yours from again? i want one of those bad boys
Member
i actually bought mine off ebay. Nobody locally had them in stock 2 years ago and i wanted it ASAP! Don't know why i was in such a hurry but i got it and that's all that matters to me
The only thing i would say that sucks about it...is being afraid of the airbag going off!
The only thing i would say that sucks about it...is being afraid of the airbag going off!
Post Whore
lol.if your airbag goes off. you are going to be FUBAR
but its a really nice steering wheel though.
and yeah I know Erick
but its a really nice steering wheel though.
and yeah I know Erick
I really want one, but don't think it would be worth it cuz of my OBD1 predicament. I can't even use a 98-01 USDM wheel because of the same reason, which is the better one of the two for 3rd gens. Has anyone successfully installed a 98+ wheel into a 94-95?
I have a tan wheel in my car right now and I need to get a black one....Anyone have one that they don't need?
I have a tan wheel in my car right now and I need to get a black one....Anyone have one that they don't need?
Time to become a Premier Member!
Just de-pin the harness and swap the plugs. Not really that big of a deal.
Blue Dragon's old car was OBD1
Blue Dragon's old car was OBD1
it was eh....hmmm..i wonder if he'd like to take up the task of an install in the future...with incentives of course.
EDIT: I just noticed you said his old car....that is not the one with the ITR wheel in it...or is it?
EDIT: I just noticed you said his old car....that is not the one with the ITR wheel in it...or is it?
