Fog light set up help
#4
Hmm. Those plugs and the harness came with the Optional choice of fogs. Meaning, if you didnt have the fogs, you dont have the harness. A better solution would be to find a harness for fogs or maybe hunt down an OEM one. I have those brown plugs, the harness is next to useless, but if you want the 'em you can have it for free
#5
the fogs i have came with everything what an oem would come with like the harness. but the plug i'm looking for is the one that is connected through the firewall. i have the brown plug that is beside my headlight and that's where you connect the fog light harness to and it continues to the inside. i'm following this installation.
http://www.team-integra.net/forum/di...0&ThreadPage=1
http://www.team-integra.net/forum/di...0&ThreadPage=1
#6
behind that WHITE plug behind the brown plug it could be there taped with BLUE TAPE...thats where i found mine...its there...if you find the brown plug in your engine bay...theres one close to the firewall...just keep looking..
#8
On EK's it's taped (usually with blue tape) behind the fuse box.

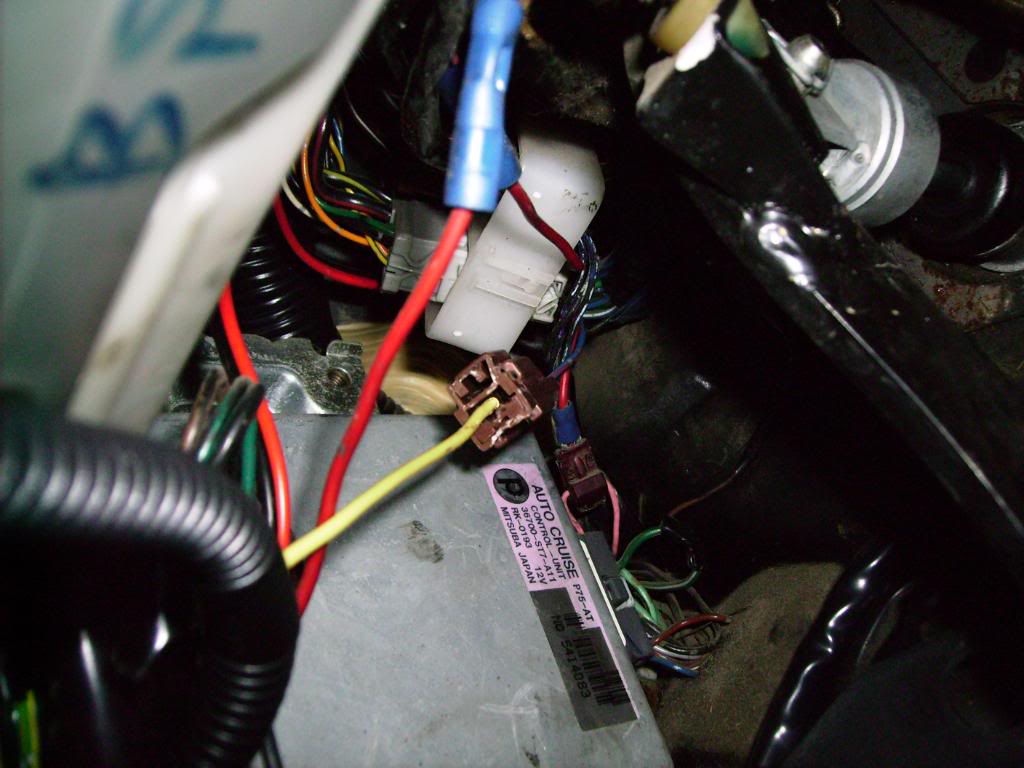

Taped up it should look like so (sorry pic is of an EK):
I agree with aldrine, it's probably close to the firewall behind the some other plug, but taped up. To get to it, you have to take off the kick panel on the driver side. I think I even removed my cruise control box to give me more room to get to it. It was way up in there on mine.

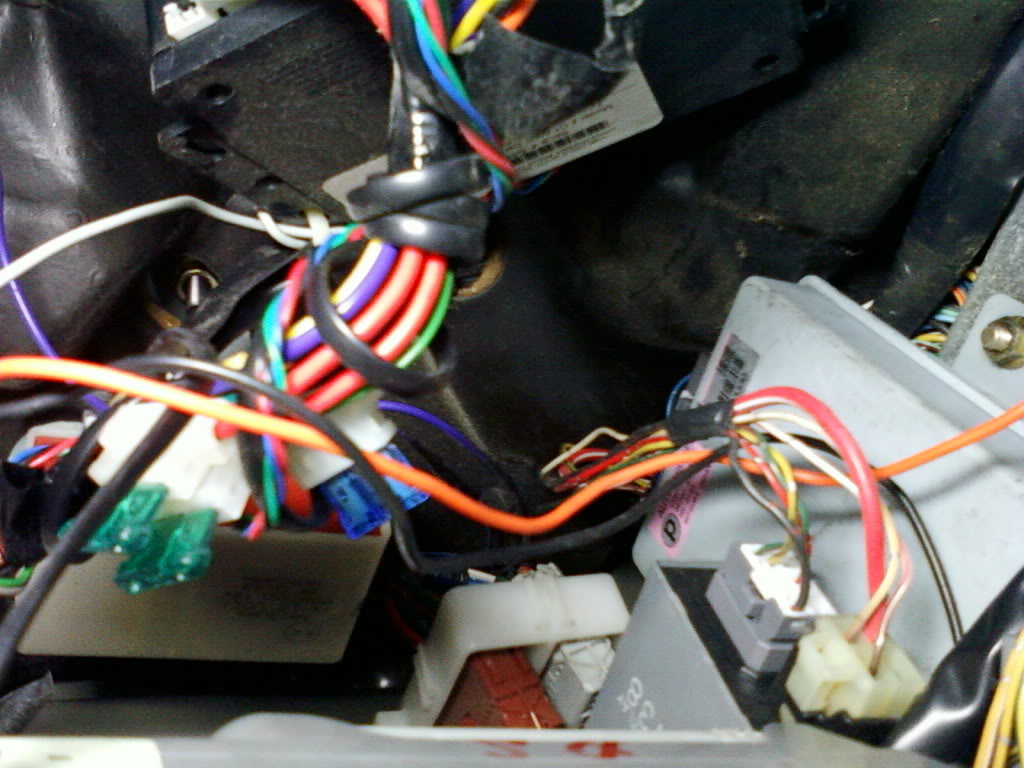

Here's it on a DC to give you a better idea:
Here's a related article:
http://www.honda-tech.com/showthread.php?t=2421886
Hope this helps!
Taped up it should look like so (sorry pic is of an EK):
I agree with aldrine, it's probably close to the firewall behind the some other plug, but taped up. To get to it, you have to take off the kick panel on the driver side. I think I even removed my cruise control box to give me more room to get to it. It was way up in there on mine.
Here's it on a DC to give you a better idea:
Here's a related article:
http://www.honda-tech.com/showthread.php?t=2421886
Hope this helps!
