Default ABS help

Hey guys,

So i think my ABS is screwed up and i was looking for some imput on the matter. Firstly my car is a 94 LS. When the car starts the first 5 minutes of driving everytime i brake i hear a knocking noise coming from brake pedal. The speed of the knocking depends on how fast im going. The knocking slows down as the car slows down. And i can feel every knock on the pedal like its pushing back at my foot. After about 5 minutes the ABS light comes on, and i read in my manual that means i no longer have ABS but just regular braking, and the knocking goes away. The car still stops okay despite all this, its just annoying as hell. Any ideas on what this could be/input on the matter?
redteggy is offline
Old 04-15-2010, 11:49 PM
  #2
There's plenty to do outside my room but I choose not to!
iTrader: (5)

Spike's Avatar

Join Date: Apr 2009
Location: Burlington
Posts: 5,142
Default

Yeah that's the ABS acting up on you. You need to scan the car and check out what the ABS code is. It could simply be a sensor that's gone, or it could be a ABS unit it's self.
Spike is offline
Old 04-16-2010, 04:28 PM
  #3
Junior Member
Thread Starter
iTrader: (1)

redteggy's Avatar

Join Date: Aug 2009
Location: Mississauga
Posts: 173
Default

thanks spike, i plan to get it checked out tomorrow.
redteggy is offline
Old 04-16-2010, 06:13 PM
  #4
Who Are You?

iTrader: (8)

AcuratePaul's Avatar

Join Date: Mar 2009
Location: Wherever Your Not
Posts: 4,804
Default

Rip it out screw the abs..unless you rather have it.
AcuratePaul is offline
Old 04-18-2010, 02:40 PM
  #5
Junior Member
Thread Starter
iTrader: (1)

redteggy's Avatar

Join Date: Aug 2009
Location: Mississauga
Posts: 173
Default

so i got an ABS test done, and it said left front wheel. turns out the ABS sensor has a crack in it, so now i have to replace driver side side drive shaft. anyone know where i can pick one up?
redteggy is offline
Old 04-18-2010, 02:57 PM
  #6
There's plenty to do outside my room but I choose not to!
iTrader: (2)

Buff4Prez Yo's Avatar

Join Date: Aug 2003
Location: The Hammer!
Posts: 8,166
Default

the sensor is cracked so you need a driveshaft?
Buff4Prez Yo is offline
Old 04-18-2010, 04:46 PM
  #7
There's plenty to do outside my room but I choose not to!
iTrader: (5)

Spike's Avatar

Join Date: Apr 2009
Location: Burlington
Posts: 5,142
Default

The sensor and drive shaft are 2 different things, so which one is it that you need?
Spike is offline
Old 04-18-2010, 05:55 PM
  #8
Junior Member
Thread Starter
iTrader: (1)

redteggy's Avatar

Join Date: Aug 2009
Location: Mississauga
Posts: 173
Default

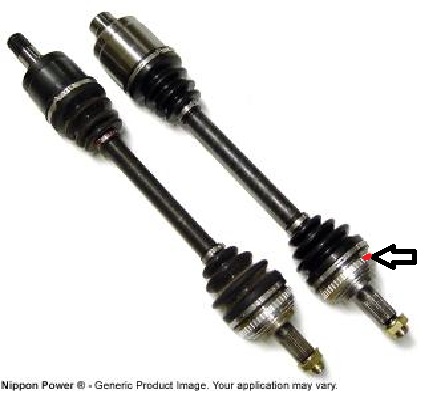

sorry, hard to explain since i dont know much about ABS or drive shafts for that matter, but the mechanic showed me the part that was cracked and i pointed to it on the pic. Its the circle thing on the drive shaft with the teeth and theres a tooth missing from it.. does that make sense?
Attached Thumbnails ABS help-img-1060-1-large.jpg
redteggy is offline
Old 04-18-2010, 07:03 PM
  #9
There's plenty to do outside my room but I choose not to!
iTrader: (5)

Spike's Avatar

Join Date: Apr 2009
Location: Burlington
Posts: 5,142
Default

Ok so that would be the drive shaft. I have a used one that I'm selling right now with half shaft for $50.
Spike is offline
Old 04-18-2010, 07:45 PM
  #10
Junior Member
Thread Starter
iTrader: (1)

redteggy's Avatar

Join Date: Aug 2009
Location: Mississauga
Posts: 173
Default

whats the condition of it? i need it for the driver side
redteggy is offline
Old 04-19-2010, 01:04 AM
  #11
There's plenty to do outside my room but I choose not to!
iTrader: (2)

Buff4Prez Yo's Avatar

Join Date: Aug 2003
Location: The Hammer!
Posts: 8,166
Default

oh ok. it's the exciter ring on the axle shaft.
Buff4Prez Yo is offline
Old 04-19-2010, 06:31 AM
  #12
There's plenty to do outside my room but I choose not to!
iTrader: (5)

Spike's Avatar

Join Date: Apr 2009
Location: Burlington
Posts: 5,142
Default

Originally Posted by redteggy
whats the condition of it? i need it for the driver side
It's fine, it was in my car.
Spike is offline
Old 04-19-2010, 10:49 AM
  #13
New Black 96 DC4

iTrader: (2)

Vida's Avatar

Join Date: Apr 2009
Location: Toronto
Posts: 3,022
Default

Hmmm, im gonna look into this also. My abs light has been on since I bought the car.
