DIY: 91 Integra Axles


Hey guys, this is my first DIY write up, so let me know what you think, and sorry about some of the blurry pictures, I was trying to get them quickly.Enjoy!

REMEMBER!
- Before removing the caliper, loosen the huge nut in the centre of the wheel and the two star tip screws holding the rotor. :headbang:I made the mistake of not doing that and had to reattach the caliper quickly.

- Grab a small box or dish to keep all your bolts together!

- Keep a drain pan underneath the tranny for any fluid that will leak out when you pull out the axle.
----------------------------------------------------------------

First of all, remove all four lug nuts and remove the wheel.

Then WD40 or MOOVIT the bolts holding on the calipers, the fork, the one big nut in the centre of the rotor and the one bolt underneath the ball joint. And leave to sit for a couple minutes.

Tools to gather in the mean time:
- 1/2" drive ratchet (better)
- 17mm, 18mm, 19mm, and 21mm sockets
- 17 mm wrench
- hammer
- dull center punch or dull chisel
- Propane torch
- WD40 or MOOVIT
- Anti-seize
- White Grease
- Crow bar
- Rubber mallet
- Breaker bar

Okay, now that the Lubricant has settled let us begin.

First of all use the breaker bar and the 21mm socket to break loose the nut in the centre holding the axle to the rotor / rotor hub.

Then use the punch / chisel to shock the two star tip screws loose. If that doesnt work at first then use the propane torch to heat it up and grab a larger bolt that is just slightly smaller than the head of the screw and tap it lightly with a hammer. The result of this is the heat softens the metal and when lightly tapping the screw with the bolt the locking head ------s up a bit to keep it from kissing up against the hole.

---------------------------------------------------

Once those are loose, remove caliper.

Top bolt removed
http://i118.photobucket.com/albums/o...i23/DIY002.jpg

Bottom bolt of caliper
http://i118.photobucket.com/albums/o...i23/DIY003.jpg

Once both bolts are removed, you should have this.
http://i118.photobucket.com/albums/o...i23/DIY004.jpg

You may have to pry a bit to get the caliper off the rotor.

-------------------------------------------------------

Now remove the caliper, you may have to use the rubber mallet and hit it around the edges and not directly on the face of the rotor.

You end up with this
http://i118.photobucket.com/albums/o...i23/DIY013.jpg

-------------------------------------------------------------

Then remove the bolt holding the fork to the lower control arm. You will need the 17mm socket and wrench. Use the wrench to grab the nut on the other end of the bolt and use the socket to grab the bolt and turn.

You might have this as a result
http://i118.photobucket.com/albums/o...i23/DIY005.jpg
DO NOT USE AN EXTENSION! AS YOU WILL LOSE STRENGTH GOING STRAIGHT TO THE SOCKET!

After the bolt is removed you should have this out
http://i118.photobucket.com/albums/o...i23/DIY008.jpg

And this left
http://i118.photobucket.com/albums/o...i23/DIY006.jpg

---------------------------------------------------

Now, look underneath the ball joint and you should see a nut with square edges going up and down with a cotter pin in between.
http://i118.photobucket.com/albums/o...i23/DIY009.jpg

Using a needle nose pliers, pull the cotter pin out without breaking it.

This should come out
http://i118.photobucket.com/albums/o...i23/DIY010.jpg

Then just using an 18mm socket take off the nut.

-----------------------------------------------------------------

Now use the crow bar and hammer to seperate the ball joint.

Apply pressure on the lower control arm with the crow bar and be careful not too rip the ball joint boot so that its not much more effort needed to hit the control arm down. Do not hit the treaded piece coming down from the ball joint or else... trouble.

http://i118.photobucket.com/albums/o...i23/DIY014.jpg

* the reason I didnt use the ball joint seperator is because I did not want to tear the ball joint boot.

----------------------------------------------------------

After taking it all apart, this is what you should have after pushing the seperating everything

http://i118.photobucket.com/albums/o...i23/DIY015.jpg.

When pulling the axle out be very careful and pull it out straight so that you do not ruin the seal inside the tranny.

THATS ALL FOR NOW, BECAUSE STUPID PARTSOURCE GAVE ME THE WRONG AXLES... SO NOW I GOTTA GO EXHANGE THEM TOMORROW!:mad:

keep us updated man i really need this my axle is bad right now too...

what you mean they gave you the wrong axle? did they give you one for ABS? if so, you can still use it.

you had to seperate the fork from the LCA? with stock DA forks the axle fits thru them.

oh no, they just gave me one for a different year teg i guess... way off. So i had to go exchange that.

ay buoy good DIY man

tanks bredrin.. mih do it juss fih you

fyi you do not pull out the axel of the tranny or you will ---- it up and have to take it apart and re attach the things inside(dont know what they are called) just use a big flat head and pry the axel out of the tranny.

Yea, I didnt get to the pulling out part on the DIY, sorta just left it there, until I have time to upload all the pics, but yea, use a big flat head and keep the axle straight up or else i think its the O-ring that gets messed up.

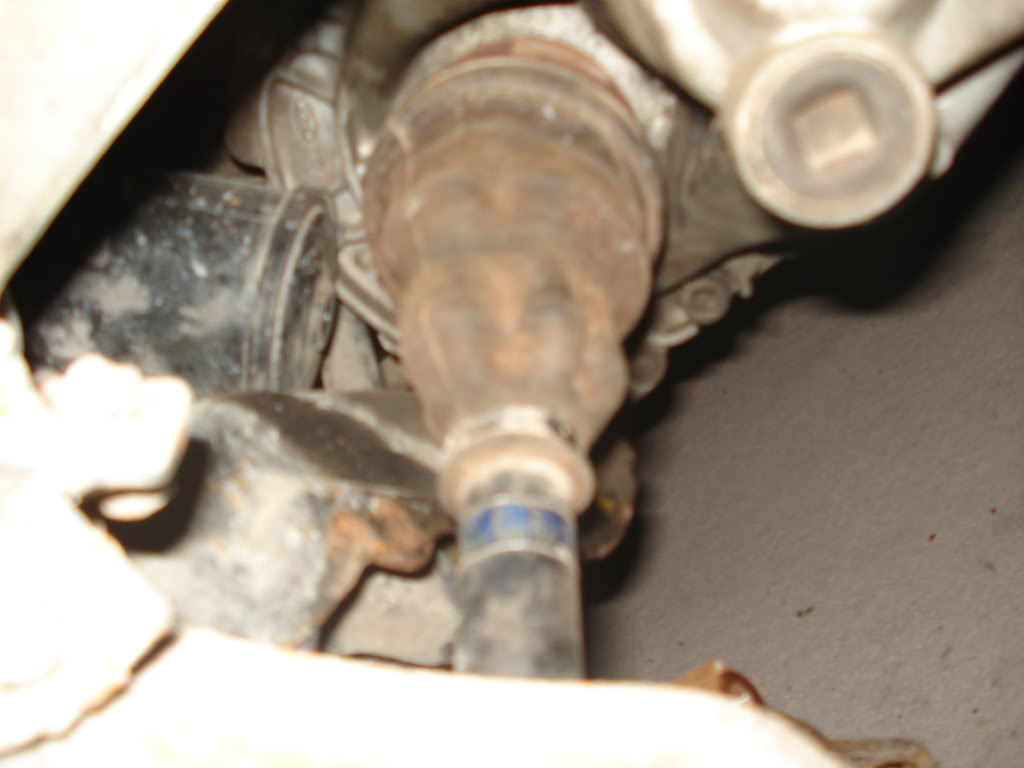

yea i tried to pull mine out and this happend
Attachment 15709

You don't have to pull the brakes off, including the caliper, they all swing out when you pop out the ball joint and remove the bolt from the bottom of the strut fork. Just to make things quicker :)

Yeah that ^

Also buy some short bungee cord or wire or something, because you should NEVER let your caliper hang by the brake line.

That looks awfully similar to doing it on a DC as well. ive never done it but judging by the pics and when ive seen mine with the wheel the setup looks damn well the same if not the exact same

You should tie the caliper off.
Leaving it hanging by the line will stress the line, not good.

yea, I didnt leave it like that for a long time, just snapped the quick shot then put it up, but brake lines are going SS anyways :P

Lately I've heard some bad things about SS brake lines.
Breaking lines and the such.

Stoptech has info on there web site.

I'd like to see the size of your breaker bar because I know everytime I've tried to break that axle nut I break my own nuts.
also, what kind of extention did you break? The piece that broke off looks circular. shouldn't it be square?
btw, just spend a bit extra and use new cotter pins.

^i noticed when your cracking the axle nut, a good penetrating oil (like PB blaster) goes a long way.

I will get you a picture later tonight when I get home from work.. and yes, penetrating oil does go a long way... I cant remember the name of the one i used.. but i gotta get to work, I will post it up when i get home

PB Blaster is the ------- ----.

With that stuff I was able to back out nuts/bolts on my rust bucket 83 Toyota Truck.

i heated the nut but was a little scred of what i might be doing to the bearing behind it but it seemed to work and the bearing is still fine so?

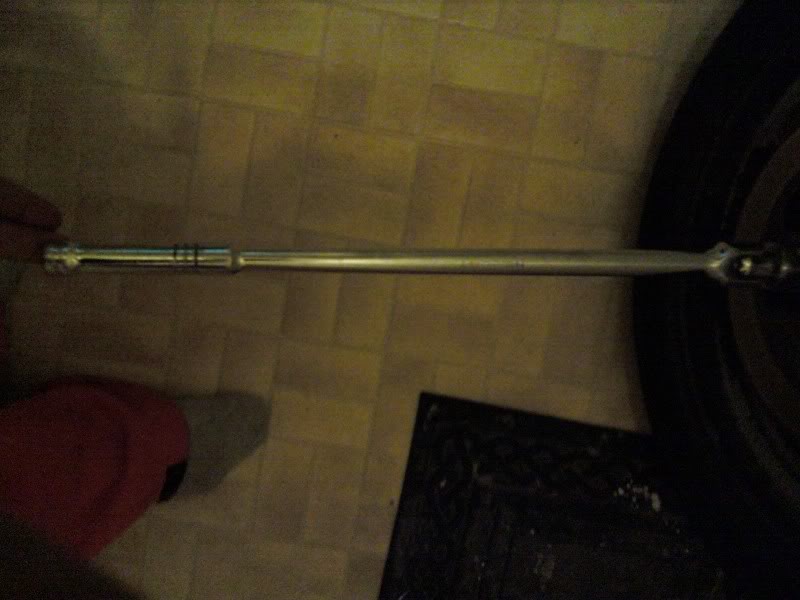

heres the breaker bar - its 1/2 inch
Attachment 14738

I used this thing called fluid film, works awesome for everything!

Yea, no need to waste time removing the caliper or rotor; the entire hub swings out of the way once you crack the axle nut, and tap it out.

Other then that, it's the exact same procedure on a DC.

lol.. first time doing it.. guess I learned something new :D... had no idea, lol
