How to build a top mount manifold with minimal warp
1. build your collector. i don't have any pics of building my collector, but space is sometimes an issue with top mounts so i decided to go with something a little more unconventional.
2. place your collector where you want it in relation to the head flange and start making your first runner. i decided to go with runner #3 since i knew it would be the most difficult to route. 3. tack it all together and then weld the runner, but not the pipe joining the runner to the head flange. http://i47.photobucket.com/albums/f1...h/DSC05817.jpg http://i47.photobucket.com/albums/f1...h/DSC05820.jpg http://i47.photobucket.com/albums/f1...h/DSC05819.jpg http://i47.photobucket.com/albums/f1...h/DSC05818.jpg 4. do the same for each of the remaining runners. http://i47.photobucket.com/albums/f1...h/DSC05822.jpg http://i47.photobucket.com/albums/f1...h/DSC05823.jpg http://i47.photobucket.com/albums/f1...h/DSC05824.jpg next runner: http://i47.photobucket.com/albums/f1...h/DSC05883.jpg http://i47.photobucket.com/albums/f1...h/DSC05884.jpg http://i47.photobucket.com/albums/f1...h/DSC05885.jpg 5. once you have the runners all welded, bolt the head flange to a thick plate or head that isn't being used. i use a 2"x3" piece of steel that i drilled and tapped the head flange bolt pattern into to prevent warping. 6. weld the insides of the pipe to head flange seams to help prevent cracking. finished product: http://i47.photobucket.com/albums/f1...h/DSC06185.jpg http://i47.photobucket.com/albums/f1...h/DSC06187.jpg http://i47.photobucket.com/albums/f1...h/DSC06186.jpg http://i47.photobucket.com/albums/f1...h/DSC06188.jpg http://i47.photobucket.com/albums/f1...h/DSC06195.jpg http://i47.photobucket.com/albums/f1...h/DSC06194.jpg you can see there is a little bit of warp, but not much. http://i47.photobucket.com/albums/f1...h/DSC06193.jpg the external wg will go on afterward. |
looking freakin MINT!
|
sick as always aaron.
When u gunna make me a sick header for my car?....lol |
Nice work!
|
Originally Posted by zman
(Post 128938)
sick as always aaron.
When u gunna make me a sick header for my car?....lol when you decide to go boost! |
Looks Sick!! So... With that setup... clearance for.. rad?... ac?... p/s??
gimmie tha scoop! :D james |
^i'll let you know soon :P
|
Looking good!
|

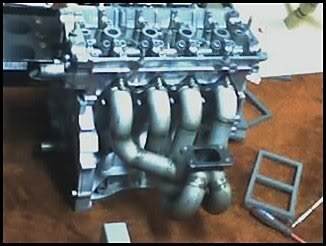

1 Attachment(s)
|
damn thats looking good..shiet
|
Def. a Fluidine Half rad in your near future..! Mock up looks Mean!
James |
do you feel your merge collector will hinder performance versus the other companies collectors?
|
Originally Posted by Stealth1
(Post 129171)
do you feel your merge collector will hinder performance versus the other companies collectors?
http://i47.photobucket.com/albums/f1...h/DSC04597.jpg http://i47.photobucket.com/albums/f1...h/DSC04613.jpg http://i47.photobucket.com/albums/f1...h/DSC04620.jpg |
dAmn yo..looks tight.... fabrication MON did a wick-Ed job
|
