***How-To*** Check & Clean Your Front ABS Wheel Sensor
6 Attachment(s)
If you have an abs light on consistently and you check the code and it says front wheel sensor, it may not be damaged, but just need to be cleaned. So to check if yours in dirty follow this article and it may solve your problem.

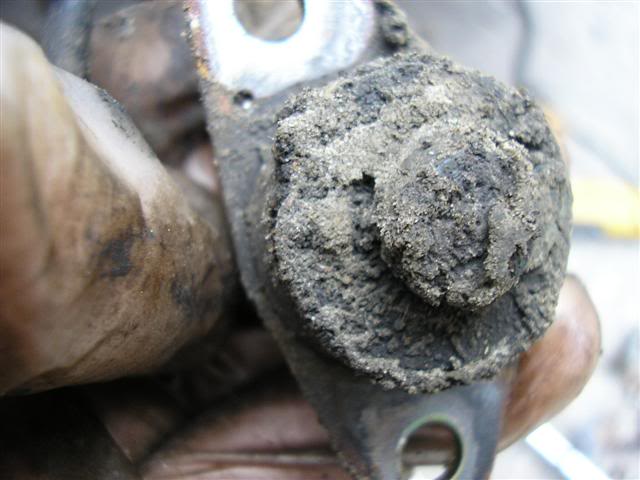

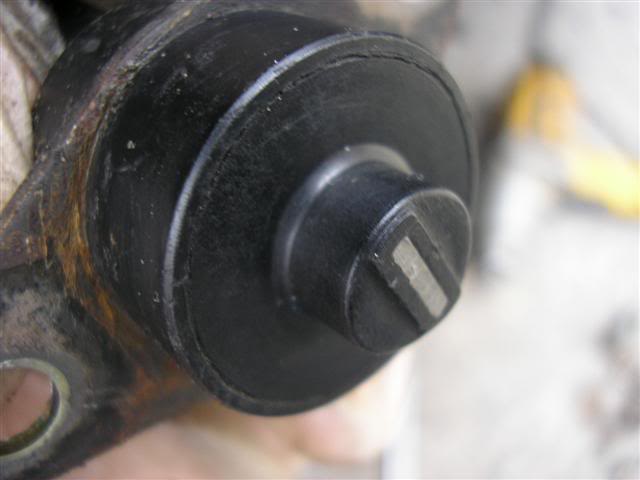

Tools Required: Ratchet 10mm Short Extension Jack Jack Stands Wheel Lock Rag or Paper Towels 1) First start by removing the front wheel for either passenger or driver side depending on which one you start with. Make sure to support your car on jack stands and not just the jack. 2) Next turn the steering wheel all the way in, opposite the side your working on. For example if you’re working on the passenger side, turn the wheel all the way towards the driver’s side. 3) Locate the abs wheel sensor which is directly mounted onto the knuckle and then remove the two 10mm bolts that hold the abs sensor directly. Then along the line there’s another two 10mm bolts, which need to be removed, just follow the abs sensor line to get at them. Three of the four bolts are pictured below. Attachment 24274 Here's what I had to deal with. Driver Side Attachment 24275 Attachment 24276 Passenger Side https://img.photobucket.com/albums/v...10027Small.jpg https://img.photobucket.com/albums/v...10026Small.jpg 4) Now take your rag or paper towels and start wiping off all the dirt and/or grease. After Cleaning Attachment 24277 Attachment 24278 Attachment 24279 Follow steps 3 - 1 backwards for re-installation. Good Luck |
^^ damn Trenell...ur the how to guy of TI :yeah:
nice write up as usual...hopefully my next ride will have abs lol... |
^^I always tell him that Sujeev...:giggle:
|
is it the same for 91 tegs? ...i have the same problem except mines ALB
|
yo wheres the stuff we did ?
nice write up tho ! |
Originally Posted by SLDB1
is it the same for 91 tegs? ...i have the same problem except mines ALB
Originally Posted by Ricochet
yo wheres the stuff we did ?
nice write up tho ! |
alb is the same as abs!! it's just the american pronouncation, anti lock breaks, aka anti lock breaking system
|
Bump
|
sorry bro but the pics don't work
|
nice the pics work, great writeup!
|
great write up my sensor is on i will clean it up and see if this works.
|
nice write up
|
